FMTC504-36
ObsoleteFairview Microwave
CBL ASSY TYPE NPLUG-TYPE NJACK 3
FMTC504-36
ObsoleteFairview Microwave
CBL ASSY TYPE NPLUG-TYPE NJACK 3
Description
General part information
FMTC504-36

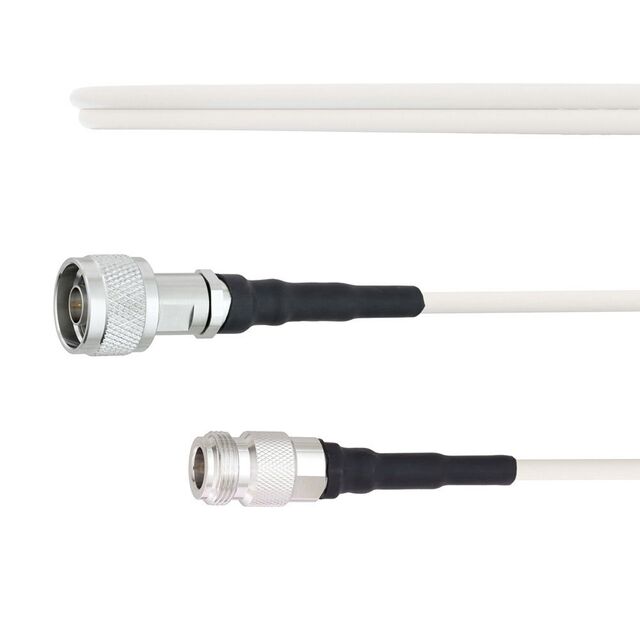

Cable Assembly Coaxial N-Type to N-Type FM-SF200LL 36.00" (914.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMTC504-36 |
|---|---|
| 1st Connector | N-Type Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | SF200LL, FM |
| Color | Silver |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 6000 MHz |
| Length | 36 in |
| Overall Impedance | 50 Ohms |
| Style | N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
