Technical Specifications
Parameters and characteristics for this part
| Specification | TR30RID |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | UL, CSA |
| Breaking Capacity (AC) | 200 kA |
| Breaking Capacity (DC) | 20 kA |
| Class | RK5 |
| Current Rating | 30 A |
| Features | Indicating |
| Fuse Type | Cartridge |
| Mounting Type | Requires Holder |
| Package / Case | Cartridge, Non-Standard |
| Response Time | Slow Blow |
| Size / Dimension Diameter | 0.551 in |
| Size / Dimension Length | 2.008 in |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 160 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 17.70 | 1w |
| 5 | $ 14.68 | |||
| 10 | $ 13.55 | |||
| 50 | $ 11.23 | |||
| 100 | $ 10.35 | |||
| 250 | $ 9.29 | |||
| 500 | $ 8.55 | |||
| 1000 | $ 7.87 | |||
CAD
3D models and CAD resources for this part
Description
General part information

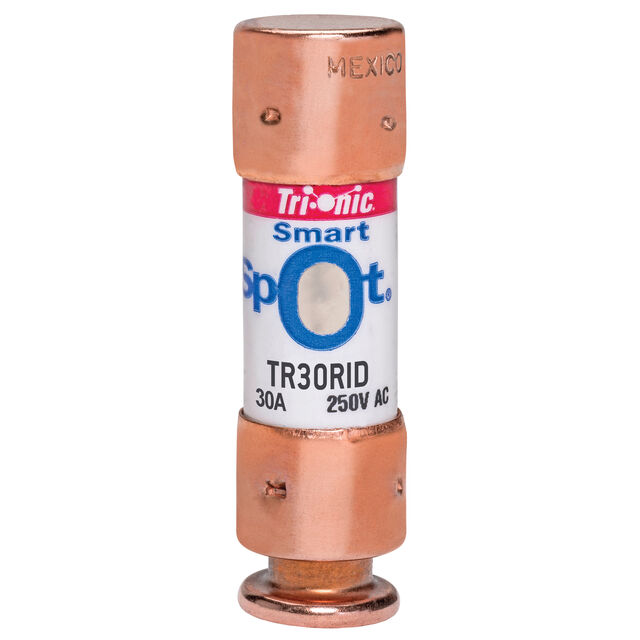

TR30RID
30A 250 VAC 160 VDC Fuse Cartridge Requires Holder
