N2516-5003-RB

Active

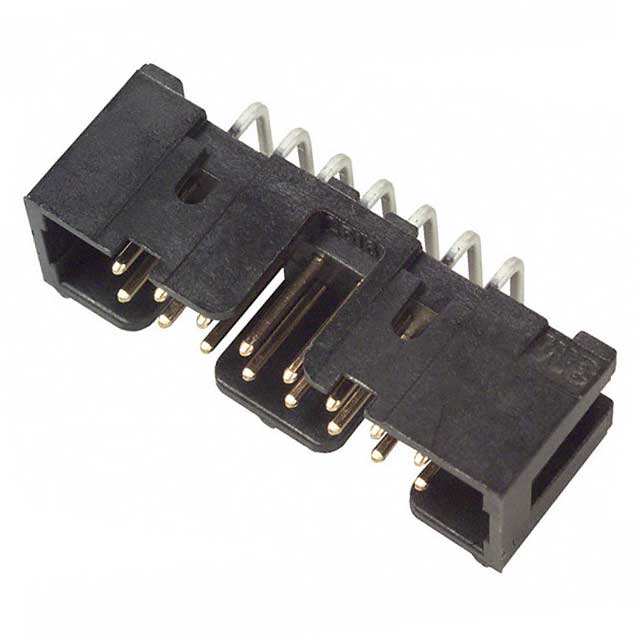

CONN SHROUDED HEADER (4 SIDES) HDR 16 POS 2.54MM SOLDER RA SIDE ENTRY THRU-HOLE BOX

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

N2516-5003-RB

Active

CONN SHROUDED HEADER (4 SIDES) HDR 16 POS 2.54MM SOLDER RA SIDE ENTRY THRU-HOLE BOX

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	N2516-5003-RB	N2516 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin-Lead, Tin
Contact Finish Thickness - Mating	30 Áin	15 - 30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.38 - 0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Post	3.94 mm	3.94 mm
Contact Length - Post	0.155 "	0.155 "
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.75 A	1.75 A
Fastening Type	Push-Pull	Push-Pull
Features	Keying Slot	Keying Slot, Pick and Place
Insulation Color	Black	Black
Insulation Height	0.338 in	0.338 in
Insulation Height	8.59 mm	8.59 mm
Insulation Height	-	9.91 mm
Insulation Height	-	0.39 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle, Through Hole, Surface Mount
Number of Positions	16	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

N2516 Series

CONN HEADER R/A 16POS 2.54MM

Part	Style	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Pitch - Mating	Pitch - Mating	Connector Type	Current Rating (Amps)	Shrouding	Number of Rows	Termination	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Shape	Features	Contact Length - Post	Contact Length - Post	Number of Positions	Insulation Height	Insulation Height	Insulation Color	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Mounting Type	Contact Finish - Mating	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height [z]	Insulation Height [z]
3M N2516-5003-UB	Board to Board, Cable	UL94 V-0	2.54 mm	0.1 in	Copper Alloy	0.1 in	2.54 mm	Header	1.75 A	Shrouded - 4 Wall	2	Solder	Male Pin	30 Áin	0.76 Ám	All	Square	Keying Slot	3.94 mm	0.155 "	16	0.338 in	8.59 mm	Black	Push-Pull	200 µin	5.08 µm	Tin-Lead	Through Hole, Right Angle	Gold	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	105 ░C	-55 °C
3M N2516-6003-UG	Board to Board, Cable	UL94 V-0	2.54 mm	0.1 in	Copper Alloy	0.1 in	2.54 mm	Header	1.75 A	Shrouded - 4 Wall	2	Solder	Male Pin	15 µin	0.38 µm	All	Square	Keying Slot	3.94 mm	0.155 "	16			Black	Push-Pull	200 µin	5.08 µm	Tin-Lead	Through Hole	Gold	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	105 ░C	-55 °C	9.91 mm	0.39 in
3M N2516-5003-RB	Board to Board, Cable	UL94 V-0	2.54 mm	0.1 in	Copper Alloy	0.1 in	2.54 mm	Header	1.75 A	Shrouded - 4 Wall	2	Solder	Male Pin	30 Áin	0.76 Ám	All	Square	Keying Slot	3.94 mm	0.155 "	16	0.338 in	8.59 mm	Black	Push-Pull	200 µin	5.08 µm	Tin	Through Hole, Right Angle	Gold	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	105 ░C	-55 °C
3M N2516-6V0C-RB-WD	Board to Board, Cable	UL94 V-0	2.54 mm	0.1 in	Copper Alloy	0.1 in	2.54 mm	Header	1.75 A	Shrouded - 4 Wall	2	Solder	Male Pin	30 Áin	0.76 Ám	All	Square	Keying Slot, Pick and Place			16			Black	Push-Pull	200 µin	5.08 µm	Tin	Surface Mount	Gold	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	105 ░C	-55 °C	9.91 mm	0.39 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.21
		10	$ 2.91
		100	$ 2.56
		560	$ 2.18
		1120	$ 1.86
		5040	$ 1.67

Description

General part information

N2516 Series

Connector Header Through Hole, Right Angle 16 position 0.100" (2.54mm)
