Description
General part information

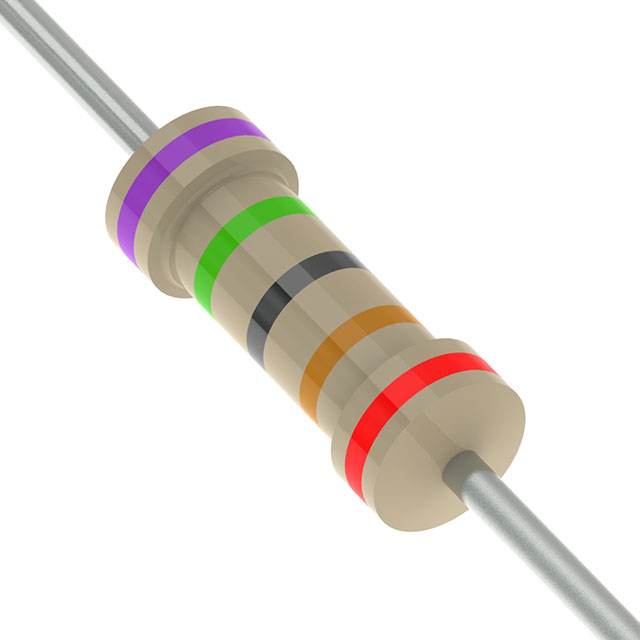

CFR-12GR-52-750K
750 kOhms ±2% 0.167W, 1/6W Through Hole Resistor Axial Automotive AEC-Q200 Carbon Film
Technical Specifications
Parameters and characteristics for this part
| Specification | CFR-12GR-52-750K |
|---|---|
| Composition | Carbon Film |
| Features | Automotive AEC-Q200 |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 0.167 W |
| Power (Watts) Options | 1/6W |
| Resistance | 750 kOhm |
| Size / Dimension Diameter | 0.075 in |
| Size / Dimension Length | 0.134 in |
| Temperature Coefficient (Highest) | 0 ppm/°C |
| Temperature Coefficient (Lowest) | -700 ppm/°C |
| Tolerance | 2 % |
