CF196 ETD3913
ActiveCosmo Ferrites Ltd.
COSMO INDIA ETD CORE MN-ZN
CF196 ETD3913
ActiveCosmo Ferrites Ltd.
COSMO INDIA ETD CORE MN-ZN
Description
General part information
CF196 ETD3913

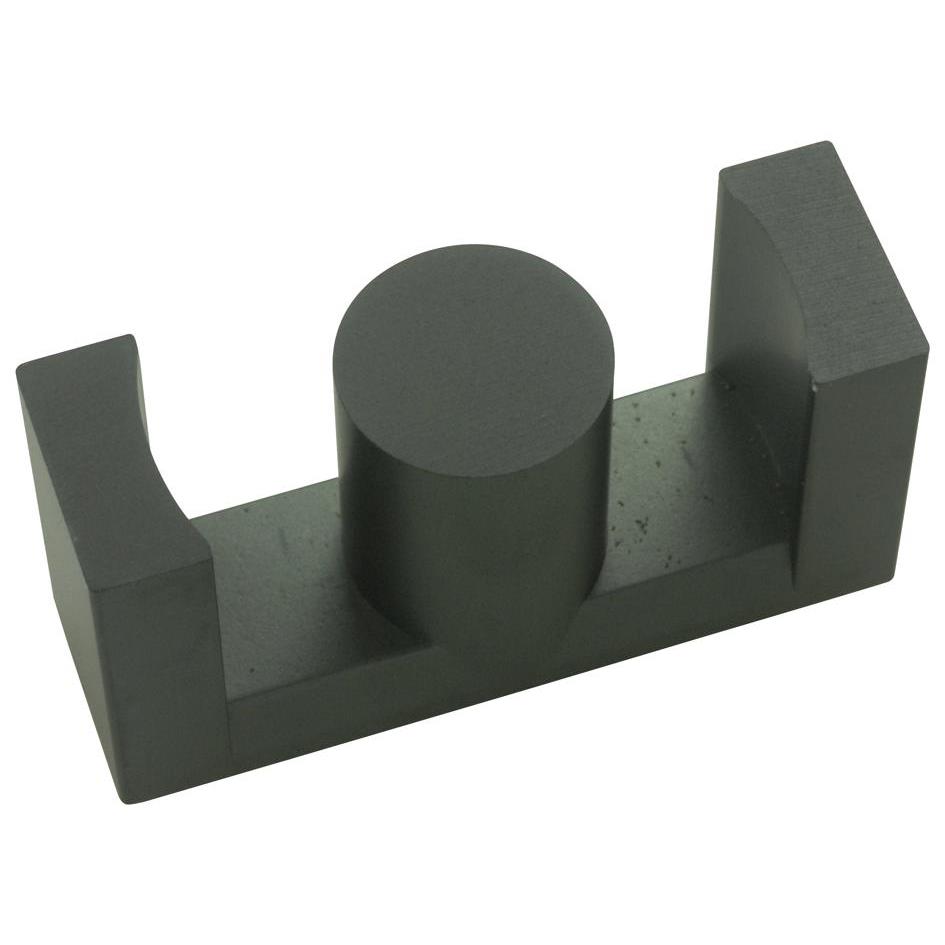

Uncoated N27 Ferrite Core ETD Type 1.531" (38.90mm) Length 0.504" (12.80mm) Width Diameter 0.787" (20.00mm) Height
Technical Specifications
Parameters and characteristics for this part
| Specification | CF196 ETD3913 |
|---|---|
| Core Type | ETD |
| Finish | Uncoated |
| Gap | Gapped |
| Height | 0.787 " |
| Length | 1.531 in |
| Material | N27 |
| Package Height | 13 mm |
| Package Length | 39 mm |
| Package Name | ETD |
| Package Width | 20 mm |
| Width | 0.504 in |
