1375583-9
ActiveTE Connectivity AMP Connectors

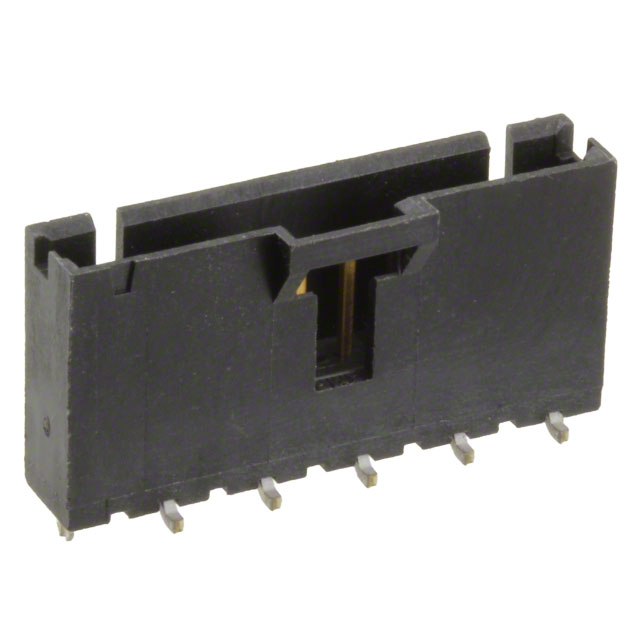

CONN HEADER SMD 10POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
1375583-9
ActiveTE Connectivity AMP Connectors
CONN HEADER SMD 10POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1375583-9 | 1375583 Series |
|---|---|---|
| Applications | Medical, General Purpose, Automotive, Telecommunications | Medical, General Purpose, Automotive, Telecommunications |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin-Lead | Tin, Tin-Lead |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Mating | 5.84 mm | 5.84 mm |
| Contact Length - Mating [x] | 0.23 in | 0.23 in |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 3 A | 3 A |
| Fastening Type | Latch Holder | Latch Holder |
| Features | Board Lock, Keying Slot | Board Lock, Keying Slot |
| Insulation Color | Black | Black |
| Insulation Height | 13.6 mm | 13.6 mm |
| Insulation Height | 0.535 in | 0.535 in |
| Insulation Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Positions | 10 | 2 - 24 |
| Number of Positions | - | 16 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
1375583 Series
CONN HEADER SMD 18POS 2.54MM
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Features | Pitch - Mating | Pitch - Mating | Termination | Number of Rows | Insulation Color | Number of Positions | Applications | Contact Length - Mating [x] | Contact Length - Mating | Contact Material | Contact Type | Current Rating (Amps) | Insulation Height | Insulation Height | Number of Positions Loaded | Contact Finish - Mating | Fastening Type | Material Flammability Rating | Insulation Material | Contact Shape | Style | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shrouding | Connector Type | Contact Finish - Post | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 6-1375583-7 | -65 ░C | 105 ░C | Surface Mount | Board Lock, Keying Slot | 0.1 in | 2.54 mm | Solder | 1 | Black | 18 | Automotive, General Purpose, Medical, Telecommunications | 0.23 in | 5.84 mm | Brass | Male Pin | 3 A | 13.6 mm | 0.535 in | All | Gold | Latch Holder | UL94 V-0 | Thermoplastic | Square | Board to Board, Cable | 2.54 µm | 100 µin | 30 Áin | 0.76 Ám | Shrouded - 4 Wall | Header | Tin | |
TE Connectivity AMP Connectors 6-1375583-5 | -65 ░C | 105 ░C | Surface Mount | Board Lock, Keying Slot | 0.1 in | 2.54 mm | Solder | 1 | Black | Automotive, General Purpose, Medical, Telecommunications | 0.23 in | 5.84 mm | Brass | Male Pin | 3 A | 13.6 mm | 0.535 in | All | Gold | Latch Holder | UL94 V-0 | Thermoplastic | Square | Board to Board, Cable | 2.54 µm | 100 µin | 30 Áin | 0.76 Ám | Shrouded - 4 Wall | Header | Tin | 16 | |
TE Connectivity AMP Connectors 1375583-9 | -65 ░C | 105 ░C | Surface Mount | Board Lock, Keying Slot | 0.1 in | 2.54 mm | Solder | 1 | Black | 10 | Automotive, General Purpose, Medical, Telecommunications | 0.23 in | 5.84 mm | Brass | Male Pin | 3 A | 13.6 mm | 0.535 in | All | Gold | Latch Holder | UL94 V-0 | Thermoplastic | Square | Board to Board, Cable | 2.54 µm | 100 µin | 30 Áin | 0.76 Ám | Shrouded - 4 Wall | Header | Tin-Lead | |
TE Connectivity AMP Connectors 7-1375583-4 | -65 ░C | 105 ░C | Surface Mount | Board Lock, Keying Slot | 0.1 in | 2.54 mm | Solder | 1 | Black | Automotive, General Purpose, Medical, Telecommunications | 0.23 in | 5.84 mm | Brass | Male Pin | 3 A | 13.6 mm | 0.535 in | All | Gold | Latch Holder | UL94 V-0 | Thermoplastic | Square | Board to Board, Cable | 2.54 µm | 100 µin | 30 Áin | 0.76 Ám | Shrouded - 4 Wall | Header | Tin | ||
TE Connectivity AMP Connectors 5-1375583-4 | -65 ░C | 105 ░C | Surface Mount | Board Lock, Keying Slot | 0.1 in | 2.54 mm | Solder | 1 | Black | Automotive, General Purpose, Medical, Telecommunications | 0.23 in | 5.84 mm | Brass | Male Pin | 3 A | 13.6 mm | 0.535 in | All | Gold | Latch Holder | UL94 V-0 | Thermoplastic | Square | Board to Board, Cable | 2.54 µm | 100 µin | 30 Áin | 0.76 Ám | Shrouded - 4 Wall | Header | Tin | ||
TE Connectivity AMP Connectors 5-1375583-8 | -65 ░C | 105 ░C | Surface Mount | Board Lock, Keying Slot | 0.1 in | 2.54 mm | Solder | 1 | Black | 9 | Automotive, General Purpose, Medical, Telecommunications | 0.23 in | 5.84 mm | Brass | Male Pin | 3 A | 13.6 mm | 0.535 in | All | Gold | Latch Holder | UL94 V-0 | Thermoplastic | Square | Board to Board, Cable | 2.54 µm | 100 µin | 30 Áin | 0.76 Ám | Shrouded - 4 Wall | Header | Tin | |
TE Connectivity AMP Connectors 1375583-5 | -65 ░C | 105 ░C | Surface Mount | Board Lock, Keying Slot | 0.1 in | 2.54 mm | Solder | 1 | Black | 6 | Automotive, General Purpose, Medical, Telecommunications | 0.23 in | 5.84 mm | Brass | Male Pin | 3 A | 13.6 mm | 0.535 in | All | Gold | Latch Holder | UL94 V-0 | Thermoplastic | Square | Board to Board, Cable | 2.54 µm | 100 µin | 30 Áin | 0.76 Ám | Shrouded - 4 Wall | Header | Tin-Lead | |
TE Connectivity AMP Connectors 7-1375583-2 | -65 ░C | 105 ░C | Surface Mount | Board Lock, Keying Slot | 0.1 in | 2.54 mm | Solder | 1 | Black | 23 | Automotive, General Purpose, Medical, Telecommunications | 0.23 in | 5.84 mm | Brass | Male Pin | 3 A | 13.6 mm | 0.535 in | All | Gold | Latch Holder | UL94 V-0 | Thermoplastic | Square | Board to Board, Cable | 2.54 µm | 100 µin | 30 Áin | 0.76 Ám | Shrouded - 4 Wall | Header | Tin | |
TE Connectivity AMP Connectors 1375583-2 | -65 ░C | 105 ░C | Surface Mount | Board Lock, Keying Slot | 0.1 in | 2.54 mm | Solder | 1 | Black | Automotive, General Purpose, Medical, Telecommunications | 0.23 in | 5.84 mm | Brass | Male Pin | 3 A | 13.6 mm | 0.535 in | All | Gold | Latch Holder | UL94 V-0 | Thermoplastic | Square | Board to Board, Cable | 2.54 µm | 100 µin | 30 Áin | 0.76 Ám | Shrouded - 4 Wall | Header | Tin-Lead | ||
TE Connectivity AMP Connectors 7-1375583-0 | -65 ░C | 105 ░C | Surface Mount | Board Lock, Keying Slot | 0.1 in | 2.54 mm | Solder | 1 | Black | 21 | Automotive, General Purpose, Medical, Telecommunications | 0.23 in | 5.84 mm | Brass | Male Pin | 3 A | 13.6 mm | 0.535 in | All | Gold | Latch Holder | UL94 V-0 | Thermoplastic | Square | Board to Board, Cable | 2.54 µm | 100 µin | 30 Áin | 0.76 Ám | Shrouded - 4 Wall | Header | Tin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 400 | $ 6.74 | |
Description
General part information
1375583 Series
Connector Header Surface Mount 10 position 0.100" (2.54mm)
