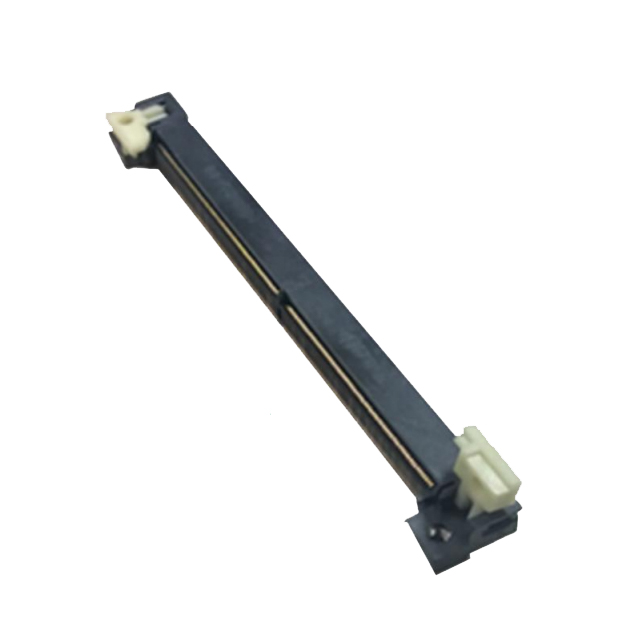

CNU113-314-2201-VE

Active

Yamaichi Electronics

CONN EDGE DUAL FML 314POS 0.020

Search across all available documentation for this part.

Active

Yamaichi Electronics

CONN EDGE DUAL FML 314POS 0.020

Technical Specifications

Parameters and characteristics for this part

CONN EDGE DUAL FML 314POS 0.020

Part	Number of Positions	Pitch [x]	Pitch [x]	Material - Insulation	Contact Material	Termination	Number of Rows	Mounting Type	Color	Features	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Contact Finish	Gender	Read Out
Yamaichi Electronics CNU113-314-2201-VE	314	0.5 mm	0.02 in	Liquid Crystal Polymer (LCP)	Copper Alloy	Solder	2	Surface Mount	Black	Board Guide	-40 °C	105 ░C	Non Specified - Dual Edge	Gold-Nickel	Female	Dual

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

314 Position Female Connector Non Specified - Dual Edge Gold-Nickel 0.020" (0.50mm) Black
