1.5SMC15AT3

Active

ON Semiconductor

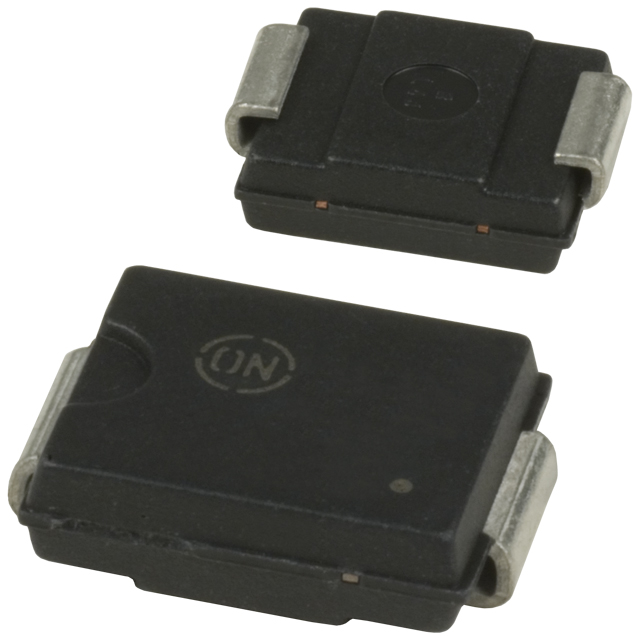

TVS DIODE 12.8VWM 21.2VC SMC

Search across all available documentation for this part.

Active

ON Semiconductor

TVS DIODE 12.8VWM 21.2VC SMC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1.5SMC15AT3	1.5SMC Series

Applications	-	General Purpose
Current - Peak Pulse (10/1000µs)	-	12 - 124 A
Mounting Type	-	Surface Mount
null		-
Operating Temperature	-	150 °C
Operating Temperature	-	-65 °C
Package / Case	-	SMC, DO-214AB
Power - Peak Pulse	-	1.5 kW
Power - Peak Pulse	-	1500 W
Power Line Protection	-	False
Supplier Device Package	-	SMC
Type	-	Zener
Unidirectional Channels	-	1
Voltage - Breakdown (Min)	-	7.79 - 86.5 V
Voltage - Clamping (Max) @ Ipp	-	12.1 - 113 V
Voltage - Clamping (Max) @ Ipp	-	30.6 - 125 V
Voltage - Reverse Standoff (Typ)	-	7.02 - 77.8 V

TVS 1500W 16V UNIDIRECT SMC

Part	Current - Peak Pulse (10/1000µs)	Unidirectional Channels [custom]	Voltage - Reverse Standoff (Typ)	Applications	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Type	Supplier Device Package	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Breakdown (Min) [Min]	Package / Case	Power - Peak Pulse	Power - Peak Pulse	Voltage - Clamping (Max) @ Ipp
ON Semiconductor 1.5SMC16AT3
ON Semiconductor 1.5SMC8.2AT3G	124 A	1	7.02 V	General Purpose	Surface Mount	150 °C	-65 °C	Zener	SMC	12.1 V	7.79 V	DO-214AB, SMC	1.5 kW	1500 W
ON Semiconductor 1.5SMC62AT3	17.7 A	1	53 V	General Purpose	Surface Mount	150 °C	-65 °C	Zener	SMC	85 V	58.9 V	DO-214AB, SMC	1.5 kW	1500 W
ON Semiconductor 1.5SMC91AT3	12 A	1	77.8 V	General Purpose	Surface Mount	150 °C	-65 °C	Zener	SMC		86.5 V	DO-214AB, SMC	1.5 kW	1500 W	125 V
ON Semiconductor 1.5SMC82AT3	13.3 A	1	70.1 V	General Purpose	Surface Mount	150 °C	-65 °C	Zener	SMC	113 V	77.9 V	DO-214AB, SMC	1.5 kW	1500 W
ON Semiconductor 1.5SMC39AT3	28 A	1	33.3 V	General Purpose	Surface Mount	150 °C	-65 °C	Zener	SMC		37.1 V	DO-214AB, SMC	1.5 kW	1500 W	53.9 V
ON Semiconductor 1.5SMC47AT3
ON Semiconductor 1.5SMC20AT3	54 A	1	17.1 V	General Purpose	Surface Mount	150 °C	-65 °C	Zener	SMC	27.7 V	19 V	DO-214AB, SMC	1.5 kW	1500 W
ON Semiconductor 1.5SMC30AT3	36 A	1	25.6 V	General Purpose	Surface Mount	150 °C	-65 °C	Zener	SMC	41.4 V	28.5 V	DO-214AB, SMC	1.5 kW	1500 W
ON Semiconductor 1.5SMC24AT3	45 A	1	20.5 V	General Purpose	Surface Mount	150 °C	-65 °C	Zener	SMC	33.2 V	22.8 V	DO-214AB, SMC	1.5 kW	1500 W
