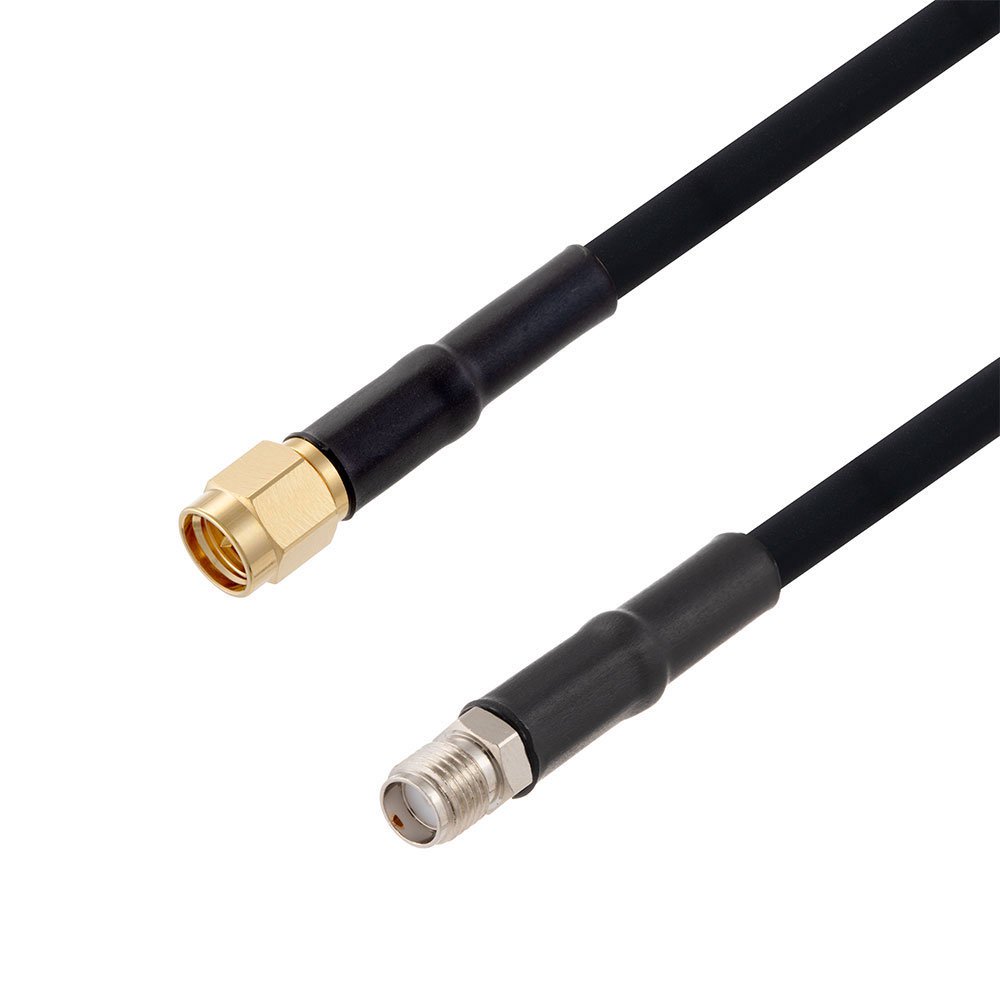

FMCA2725-48
ActiveFairview Microwave
CBL ASSY SMAPLUG-SMAJACK 48
FMCA2725-48
ActiveFairview Microwave
CBL ASSY SMAPLUG-SMAJACK 48
Description
General part information
FMCA2725-48
Cable Assembly Coaxial
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2725-48 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-223, 223, RG |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 11 GHz |
| Length | 48 in |
| Overall Impedance | 50 Ohms |
| Style | SMA |
