SPCM400 NC180

Active

ALPHA WIRE

HEATSHRINK .4" PO BK 48"

Search across all available documentation for this part.

Active

ALPHA WIRE

HEATSHRINK .4" PO BK 48"

Technical Specifications

Parameters and characteristics for this part

Specification	SPCM400 NC180

Color	Black
Features	Self Extinguishing, Fluid Resistant, Adhesive Lined, UV Resistant, Abrasion Resistant
Inner Diameter - Recovered [diameter]	3.81 mm
Inner Diameter - Recovered [diameter]	0.15 "
Inner Diameter - Supplied [diameter]	0.4 in
Inner Diameter - Supplied [diameter]	10.16 mm
Length [x]	1.22 m
Length [x]	4 ft
Material	Polyolefin (PO), Irradiated
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	1.27 mm
Recovered Wall Thickness	0.05 in
Shelf Life	300 Months
Shrink Temperature	120 °C
Shrinkage Ratio [Max]	3
Shrinkage Ratio [Min]	1
Type	Tubing, Flexible

HEATSHRINK .4" PO BK 48"

Part	Features	Recovered Wall Thickness	Recovered Wall Thickness	Color	Shelf Life	Length [x]	Length [x]	Shrink Temperature	Type	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Material	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Operating Temperature [Min]	Operating Temperature [Max]
ALPHA WIRE SPCM400 NC180	Abrasion Resistant, Adhesive Lined, Fluid Resistant, Self Extinguishing, UV Resistant	1.27 mm	0.05 in	Black	300 Months	1.22 m	4 ft	120 °C	Tubing, Flexible	1	3	0.4 in	10.16 mm	Polyolefin (PO), Irradiated	3.81 mm	0.15 "	-55 °C	200 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

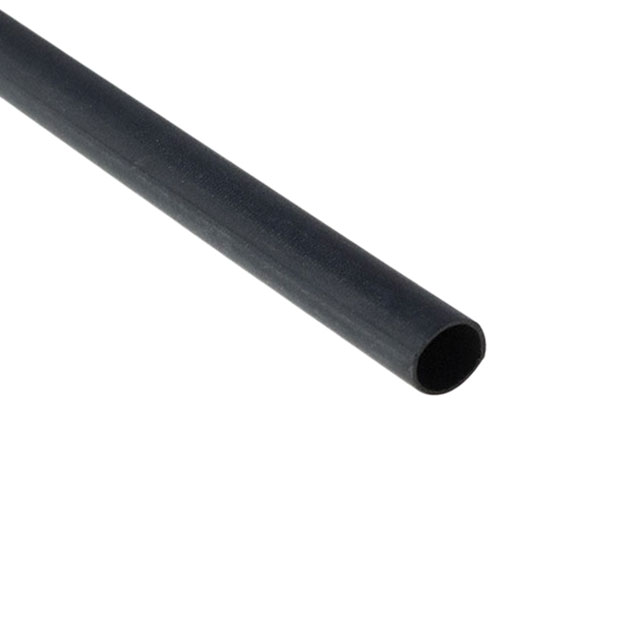

Heat Shrink Tubing, Flexible 0.400" (10.16mm) 3 to 1 Black 4.00' (1.22m)
