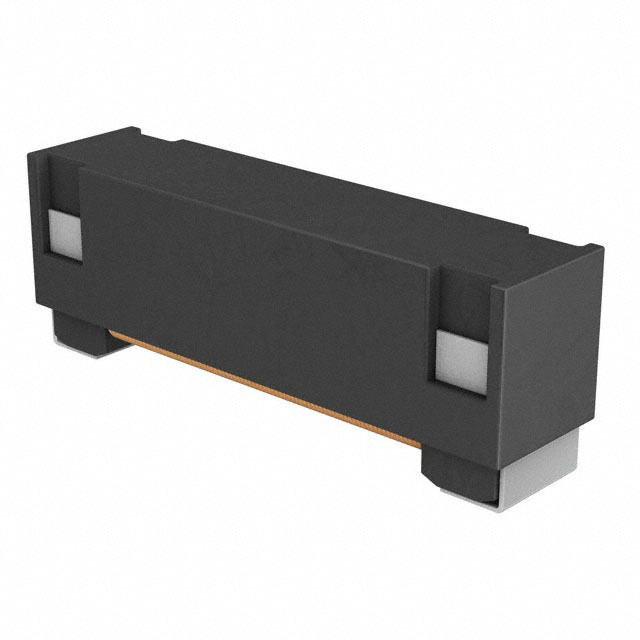

TPL802727-193H
ObsoleteTDK Corporation
FIXED IND 18.52MH 240 OHM SMD
TPL802727-193H
ObsoleteTDK Corporation
FIXED IND 18.52MH 240 OHM SMD
Description
General part information
TPL802727-193H
18.52 mH Unshielded Inductor 240Ohm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | TPL802727-193H |
|---|---|
| DC Resistance (DCR) (Max) | 240 Ohm |
| Height - Seated (Max) | 0.114 in |
| Inductance | 18.52 mH |
| Inductance Frequency - Test | 125 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Q | 40 |
| Ratings | AEC-Q200 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.309 in |
| Size / Dimension Width | 0.106 in |
| Tolerance | 3 % |
