FFSD-11-D-04.00-01-N-R

Active

Samtec Inc.

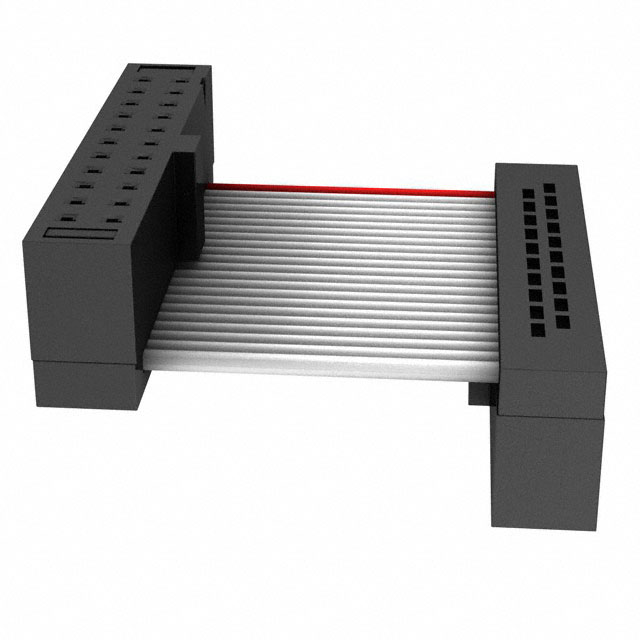

CABLE ASSEMBLY 0.101M 30AWG 1.27MM 22 TO 22 POS IDC CONNECTOR TO IDC CONNECTOR F-F TIGER EYE™ BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FFSD-11-D-04.00-01-N-R

Active

Samtec Inc.

CABLE ASSEMBLY 0.101M 30AWG 1.27MM 22 TO 22 POS IDC CONNECTOR TO IDC CONNECTOR F-F TIGER EYE™ BULK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFSD-11-D-04.00-01-N-R

Cable Termination	IDC
Connector Type	Socket to Socket, Reversed
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Polarizing Key, Reverse Wiring
Length [x]	4 "
Length [x]	0.333 ft
Length [x]	101.6 mm
Number of Positions	22 positions
Number of Rows	2
Pitch - Cable	0.64 mm
Pitch - Cable [x]	0.025 in
Pitch - Connector	0.05 in
Pitch - Connector	1.27 mm
Shielding	Unshielded

FFSD-11 Series

Part	Pitch - Cable [x]	Pitch - Cable	Features	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Length [x]	Length [x]	Number of Rows	Contact Finish	Cable Termination	Shielding	Pitch - Connector	Pitch - Connector	Connector Type	Length	Length	Length	Length [x]	Length
Samtec Inc. FFSD-11-D-18.00-01-N	0.025 in	0.64 mm	Polarizing Key	22 positions	10 Áin	0.25 Ám	457.2 mm	1.5 ft	2	Gold	IDC	Unshielded	0.05 in	1.27 mm	Socket to Socket
Samtec Inc. FFSD-11-S-06.00-01-N	0.025 in	0.64 mm	Polarizing Key	22 positions	10 Áin	0.25 Ám			2	Gold	IDC	Unshielded	0.05 in	1.27 mm	Socket to Cable	152.4 mm	6 "	0.5 '
Samtec Inc. FFSD-11-D-24.00-01-N	0.025 in	0.64 mm	Polarizing Key	22 positions	10 Áin	0.25 Ám	609.6 mm	2 '	2	Gold	IDC	Unshielded	0.05 in	1.27 mm	Socket to Socket
Samtec Inc. FFSD-11-D-04.00-01-N-R	0.025 in	0.64 mm	Polarizing Key Reverse Wiring	22 positions	10 Áin	0.25 Ám	101.6 mm	0.333 ft	2	Gold	IDC	Unshielded	0.05 in	1.27 mm	Socket to Socket Reversed				4 "
Samtec Inc. FFSD-11-D-28.00-01-N	0.025 in	0.64 mm	Polarizing Key	22 positions	10 Áin	0.25 Ám			2	Gold	IDC	Unshielded	0.05 in	1.27 mm	Socket to Socket	711.2 mm				2.33 '
Samtec Inc. FFSD-11-D-99.99-01-N	0.025 in	0.64 mm	Polarizing Key	22 positions	10 Áin	0.25 Ám			2	Gold	IDC	Unshielded	0.05 in	1.27 mm	Socket to Socket	2.54 m				8.33 ft
Samtec Inc. FFSD-11-D-02.50-01-N	0.025 in	0.64 mm	Polarizing Key	22 positions	10 Áin	0.25 Ám	63.5 mm	2.496 in	2	Gold	IDC	Unshielded	0.05 in	1.27 mm	Socket to Socket				2.5 in
Samtec Inc. FFSD-11-D-08.00-01-N	0.025 in	0.64 mm	Polarizing Key	22 positions	10 Áin	0.25 Ám			2	Gold	IDC	Unshielded	0.05 in	1.27 mm	Socket to Socket	203.2 mm	8 in			0.667 ft
Samtec Inc. FFSD-11-D-05.00-01-N	0.025 in	0.64 mm	Polarizing Key	22 positions	10 Áin	0.25 Ám	127 mm	0.417 '	2	Gold	IDC	Unshielded	0.05 in	1.27 mm	Socket to Socket				5 "
Samtec Inc. FFSD-11-D-03.00-01-N	0.025 in	0.64 mm	Polarizing Key	22 positions	10 Áin	0.25 Ám			2	Gold	IDC	Unshielded	0.05 in	1.27 mm	Socket to Socket	76.2 mm	3 "			0.25 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.44

Description

General part information

FFSD-11 Series

22 Position Cable Assembly Rectangular Socket to Socket, Reversed 0.333' (101.60mm, 4.00")
