894AT1004RM
ActiveGowanda Electronics

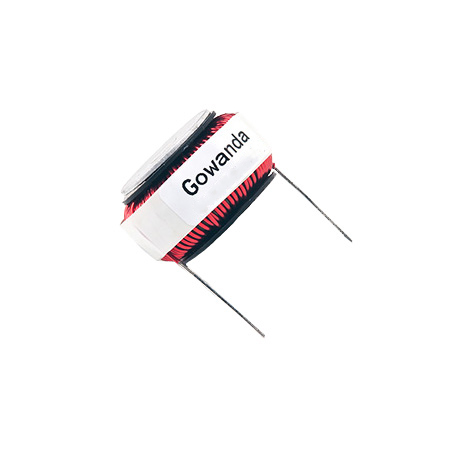

HORIZONTAL TOROIDAL INDUCTOR
894AT1004RM
ActiveGowanda Electronics
HORIZONTAL TOROIDAL INDUCTOR
Description
General part information
894AT1004RM
1 mH Shielded Toroidal Inductor 2.4 A 235mOhm Max Radial, Horizontal Cylinder (Open)
Technical Specifications
Parameters and characteristics for this part
| Specification | 894AT1004RM |
|---|---|
| Current - Saturation (Isat) | 3.5 A |
| Current Rating | 2.4 A |
| DC Resistance (DCR) (Max) | 235 mOhm |
| Frequency - Self Resonant | 300 kHz |
| Height - Seated (Max) | 0.8 in |
| Inductance | 1 mH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial, Horizontal Cylinder (Open) |
| Package Name | Radial |
| Shielding | Shielded |
| Size / Dimension Diameter | 1.339 in |
| Tolerance | 10 % |
| Type | Toroidal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
