KRF120-10-45GR
ActiveElpress Inc.

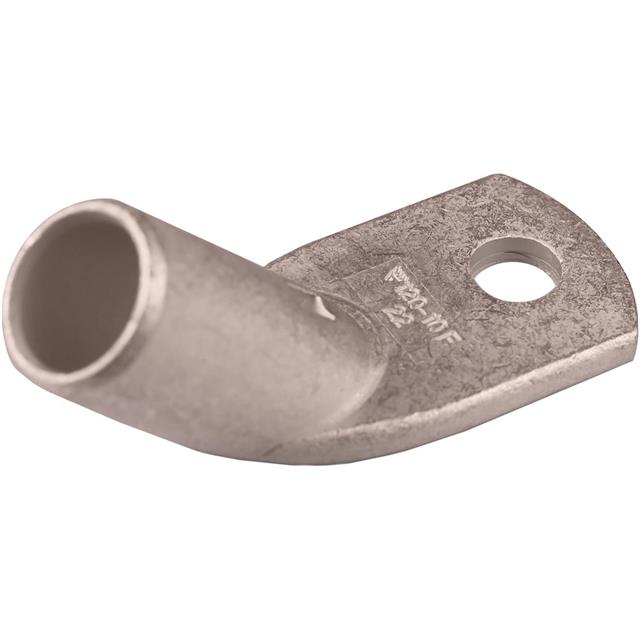

BATTERY LUG 45 120 MM M10, 4/0
KRF120-10-45GR
ActiveElpress Inc.
BATTERY LUG 45 120 MM M10, 4/0
Description
General part information
KRF120-10-45GR
Terminal Connector Rectangular Ring, Tubular 4 AWG M10 Stud
Technical Specifications
Parameters and characteristics for this part
| Specification | KRF120-10-45GR |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | UL Listed |
| Insulation | Non-Insulated |
| Length - Overall | 2.874 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | M10 Stud, M10 |
| Tab Thickness | 0.193 in |
| Terminal Type | Ring, Tubular |
| Termination | Crimp |
| Width - Outer Edges | 1.259 in |
| Wire Gauge | 4 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
