PE-01005FB700ST
ObsoletePulse Electronics

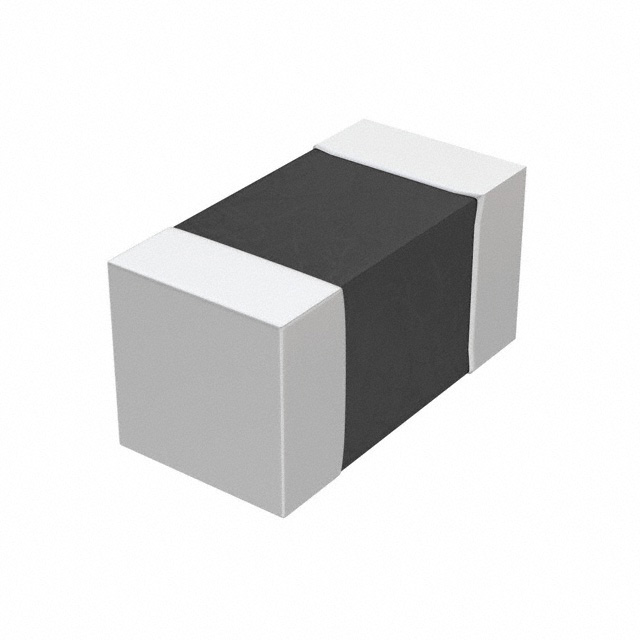

FERRITE BEAD 70 OHM 01005 1LN
PE-01005FB700ST
ObsoletePulse Electronics
FERRITE BEAD 70 OHM 01005 1LN
Description
General part information
PE-01005FB700ST
70 Ohms @ 100 MHz 1 Signal Line Ferrite Bead 01005 (0402 Metric) 280mA 370mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | PE-01005FB700ST |
|---|---|
| Current Rating (Max) | 280 mA |
| DC Resistance (DCR) (Max) | 370 mOhm |
| Filter Type | Signal Line |
| Height (Max) | 0.009 in |
| Impedance | 70 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 01005 (0402 Metric) |
| Size / Dimension Length | 0.016 in |
| Size / Dimension Width | 0.008 in |
