NTCLE413E2103F102L
ActiveVishay Dale
THERMISTOR, NTC, 10 KOHM, NTCLE413 SERIES, 3435 K, THROUGH HOLE, WIRE LEADED
NTCLE413E2103F102L
ActiveVishay Dale
THERMISTOR, NTC, 10 KOHM, NTCLE413 SERIES, 3435 K, THROUGH HOLE, WIRE LEADED
Description
General part information
NTCLE413E2103F102L

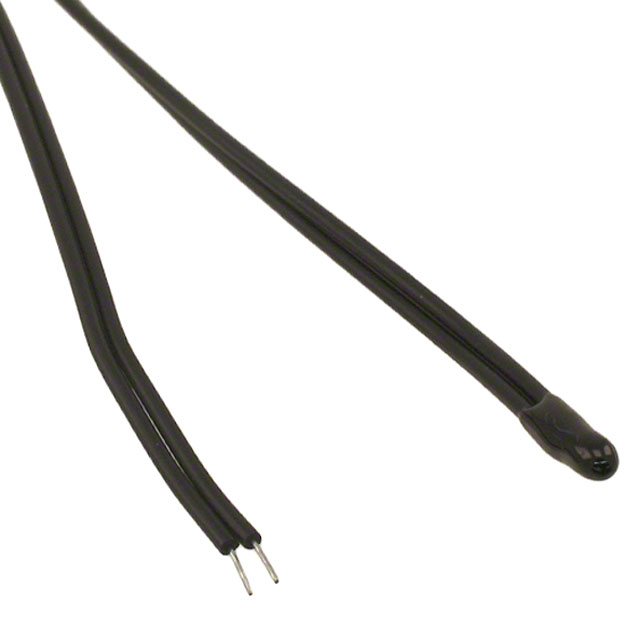

NTCLE413E2103F102L is a NTC thermistor with mini epoxy PVC twin insulated leads. This sensor consist of small NTC chip soldered between stranded AWG #30, 105°C resistant, PVC (UL2651). Terminations are solder dipped.
Technical Specifications
Parameters and characteristics for this part
| Specification | NTCLE413E2103F102L |
|---|---|
| B Value (25/85) | 3435 K |
| B Value Tolerance | 1 % |
| Length - Lead Wire | 39.37 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Bead |
| Power - Max | 250 mW |
| Resistance (Ohms) | 10 kOhm |
| Resistance Tolerance (%) | 1 % |
