HVD3102
ObsoleteTeledyne LeCroy
OSCOPE PROBE X100/X1K 25MHZ 10M
HVD3102
ObsoleteTeledyne LeCroy
OSCOPE PROBE X100/X1K 25MHZ 10M
Description
General part information
HVD3102

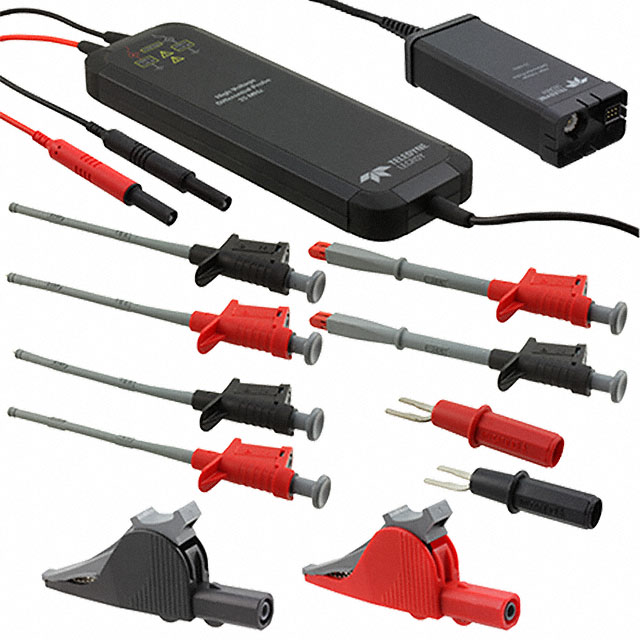

100:1, 1000:1 Voltage Probe, Differential 25MHz 88.583" (2250.00mm) Black and Red Oscilloscope Probe Test Lead 10M Input Resistance CAT III 1000V
Technical Specifications
Parameters and characteristics for this part
| Specification | HVD3102 |
|---|---|
| Attenuation Value | 1000:1, 100:1 |
| Attenuation Value | 100 :1, 1000 :1 |
| Bandwidth | 25 MHz |
| Cable Length | 88.583 in |
| Capacitance - Input | 2.5 pF |
| Color | Black, Red |
| Includes | Pincers, Clips, Hooks, Spade Terminals |
| Resistance - Input | 10 MOhm |
| Type | Voltage Probe, Differential |
| Voltage - Max (CAT III) | 1000 V |
| Voltage - Max Category | CAT III |
