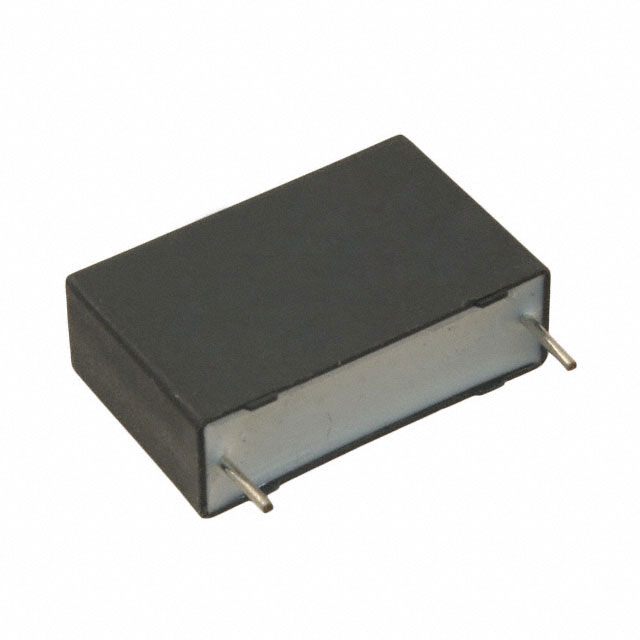

160225J100N
ObsoleteCornell Dubilier Knowles
CAP FILM 2.2UF 5% 100VDC RADIAL
160225J100N
ObsoleteCornell Dubilier Knowles
CAP FILM 2.2UF 5% 100VDC RADIAL
Description
General part information
160225J100N
2.2 µF Film Capacitor 63V 100V Polyester, Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | 160225J100N |
|---|---|
| Applications | General Purpose |
| Capacitance | 2.2 µF |
| Dielectric Material | Polyester, Metallized |
| Height - Seated (Max) | 0.669 in |
| Lead Spacing | 0.886 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 1.043 in |
| Size / Dimension Width | 0.335 in |
| Termination | PC Pins |
| Tolerance | 5 % |
| Voltage Rating - AC | 63 V |
| Voltage Rating - DC | 100 V |
