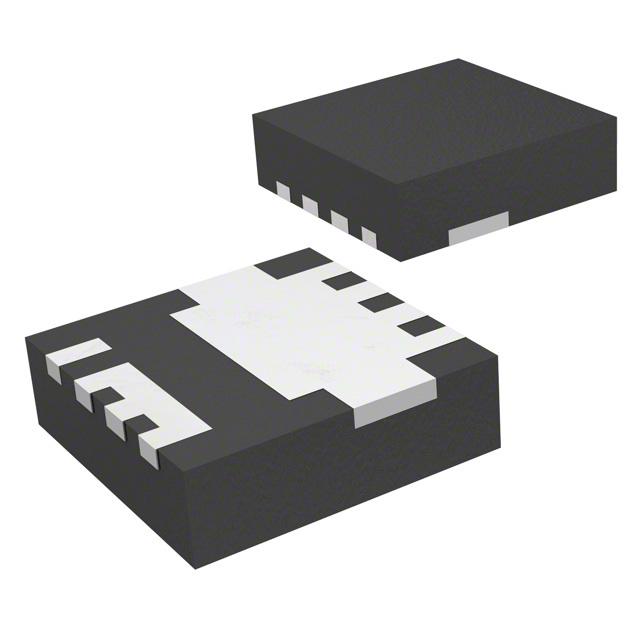

STPS8L30DEE-TR - 8-Power TDFN PowerFlat

STPS8L30DEE-TR

Active
STMicroelectronics

RECTIFIER DIODE, SINGLE, 30 V, 8 A, 570 MV, 100 A, 150 C ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet+19
STPS8L30DEE-TR - 8-Power TDFN PowerFlat

STPS8L30DEE-TR

Active
STMicroelectronics

RECTIFIER DIODE, SINGLE, 30 V, 8 A, 570 MV, 100 A, 150 C ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet+19

Technical Specifications

Parameters and characteristics commom to parts in this series

SpecificationSTPS8L30DEE-TRSTPS8 Series
Current - Average Rectified (Io)8 A8 A
Current - Reverse Leakage @ Vr1 mA1 - 4.5 mA
Mounting TypeSurface MountSurface Mount, Through Hole
Operating Temperature - Junction150 °C150 °C
Operating Temperature - Junction-175 °C
Package / Case8-PowerTDFN8-PowerTDFN, TO-220-2, SC-63, DPAK (2 Leads + Tab), TO-252-3, TO-220-2 Full Pack, Isolated Tab, D2PAK (2 Leads + Tab), TO-263AB, TO-263-3
Speed200 mA, 500 ns200 - 500 mA
Supplier Device PackagePowerFlat™ (3.3x3.3)PowerFlat™ (3.3x3.3), TO-220AC, DPAK, D2PAK
Supplier Device Package [x]3.33.3
Supplier Device Package [y]3.33.3
TechnologySchottkySchottky
Voltage - DC Reverse (Vr) (Max) [Max]30 V30 - 100 V
Voltage - Forward (Vf) (Max) @ If500 mV490 - 710 mV

STPS8 Series

100 V, 8A TO-220 D2PAK Power Schottky rectifier

PartTechnologySupplier Device Package [x]Supplier Device PackageSupplier Device Package [y]Voltage - DC Reverse (Vr) (Max) [Max]Voltage - Forward (Vf) (Max) @ IfCurrent - Reverse Leakage @ VrPackage / CaseMounting TypeCurrent - Average Rectified (Io)Operating Temperature - JunctionSpeedOperating Temperature - Junction [Max]
STMicroelectronics
STPS8L30DEE-TR
Schottky
3.3
PowerFlat™ (3.3x3.3)
3.3
30 V
500 mV
1 mA
8-PowerTDFN
Surface Mount
8 A
150 °C
200 mA, 500 ns
STMicroelectronics
STPS8H100D
Schottky
TO-220AC
100 V
710 mV
4.5 µA
TO-220-2
Through Hole
8 A
200 mA, 500 ns
175 °C
STMicroelectronics
STPS8L30B-TR
Schottky
DPAK
30 V
490 mV
1 mA
DPAK (2 Leads + Tab), SC-63, TO-252-3
Surface Mount
8 A
150 °C
200 mA, 500 ns
STMicroelectronics
STPS8H100FP
Schottky
100 V
710 mV
4.5 µA
TO-220-2 Full Pack, Isolated Tab
Through Hole
8 A
200 mA, 500 ns
175 °C
STMicroelectronics
STPS8H100G-TR
Schottky
D2PAK
100 V
710 mV
4.5 µA
D2PAK (2 Leads + Tab), TO-263-3, TO-263AB
Surface Mount
8 A
200 mA, 500 ns
175 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.08
10$ 0.89
100$ 0.69
500$ 0.58
1000$ 0.48
Digi-Reel® 1$ 1.08
10$ 0.89
100$ 0.69
500$ 0.58
1000$ 0.48
Tape & Reel (TR) 3000$ 0.45
6000$ 0.43
9000$ 0.41
NewarkEach (Supplied on Cut Tape) 1$ 1.03
10$ 0.67
25$ 0.64
50$ 0.61
100$ 0.58
250$ 0.53
500$ 0.49
1000$ 0.46

Description

General part information

STPS8 Series

Schottky barrier rectifier designed for high frequency compact switched mode power supplies such as adaptors and on-board DC-DC converters.
