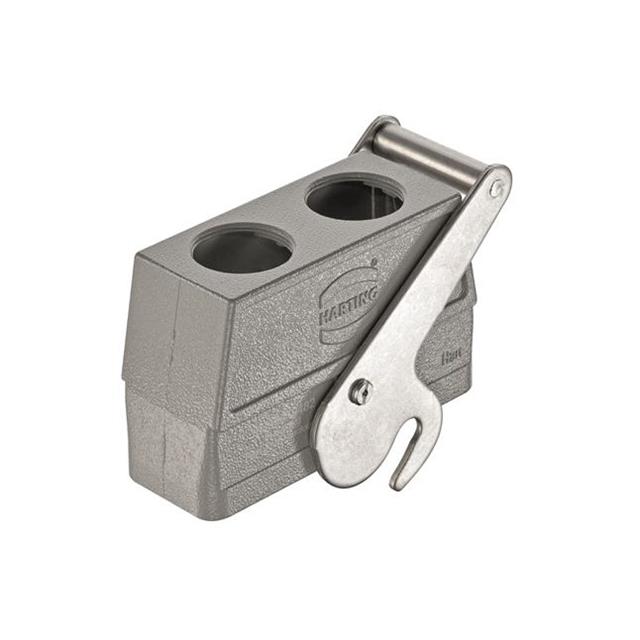

Specification	19300240482

Connector Type	Hood
Housing Color	Gray
Housing Material	Die Cast, Aluminum
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Size	24B
Style	Top Entry, Dual
Thread Size	M32

19300240 Series

Part	Lock Location	Ingress Protection IP Rating	Ingress Protection Description	Size	Operating Temperature (Max)	Operating Temperature (Min)	Style	Housing Color	Housing Finish	Connector Type	Housing Material	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Thread Size	Features
HARTING 19300240548	Locking Clip (1) on Base Bottom	IP65	Dust Tight Water Resistant	24B	125 °C	-40 °C	Side Entry	Gray	Powder Coated	Hood	Aluminum Die Cast	4.724 in	2.992 in	1.693 in	M40
HARTING 19300240458		IP65 IP66 IP67	Dust Tight Water Resistant Waterproof	24B	125 °C	-40 °C	Top Entry	Gray		Hood	Aluminum Die Cast				M32
HARTING 19300240737	Locking Clip (2) on Hood Top	IP65	Dust Tight Water Resistant	24B	125 °C	-40 °C	Bottom Entry Top or Bottom Entry	Gray	Powder Coated	Hood - Coupling	Aluminum Die Cast	4.724 in	3.087 in	1.693 in	M32	Cable Cable to Cable
HARTING 19300240449
HARTING 19300240438	Locking Clip (2) on Hood	IP65	Dust Tight Water Resistant	24B	125 °C	-40 °C	Top Entry	Gray	Powder Coated	Hood	Aluminum Die Cast	4.724 in	2.992 in	1.693 in	M40
HARTING 19300240297	Locking Clip (1) on Base Bottom	IP65	Dust Tight Water Resistant	24B	125 °C	-40 °C	Side Entry	Gray	Powder Coated	Base - Box Mount	Aluminum Die Cast	5.669 in	3.181 in	2.244 in	M32	Cover Feed Through
HARTING 19300240273	Locking Clip (2) on Base Bottom	IP65	Dust Tight Water Resistant	24B	125 °C	-40 °C	Side Entry	Gray	Powder Coated	Base - Box Mount	Aluminum Die Cast	5.669 in	3.181 in	2.244 in	M40	Feed Through
HARTING 19300240547	Locking Clip (1) on Base Bottom	IP65	Dust Tight Water Resistant	24B	125 °C	-40 °C	Side Entry	Gray	Powder Coated	Hood	Aluminum Die Cast	4.724 in	2.992 in	1.693 in	M32
HARTING 19300240466	Locking Clip (2) on Base Bottom	IP65 IP66 IP67	Dust Tight Water Resistant Waterproof	24B	125 °C	-40 °C	Dual Top Entry	Gray	Powder Coated	Hood	Aluminum Die Cast	4.724 in	2.992 in	1.693 in	M25
HARTING 19300240738	Locking Clip (2) on Hood Top	IP65	Dust Tight Water Resistant	24B	125 °C	-40 °C	Bottom Entry Top or Bottom Entry	Gray	Powder Coated	Hood - Coupling	Aluminum Die Cast	4.724 in	3.047 in	1.693 in	M40	Cable Cable to Cable
