9773 060500

Active

Belden Inc.

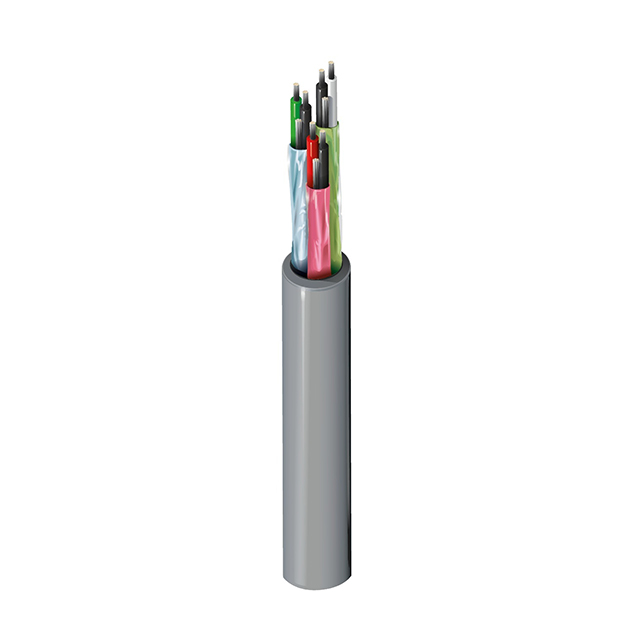

MULTIPAIR CABLE, AUDIO CONTROL, SHIELDED, 3 PAIR, 18 AWG, 500 FT, 152.4 M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

9773 060500

Active

Belden Inc.

MULTIPAIR CABLE, AUDIO CONTROL, SHIELDED, 3 PAIR, 18 AWG, 500 FT, 152.4 M

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9773 060500

Cable Type	Multi-Pair
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.404 in
Jacket (Insulation) Diameter [diameter]	10.26 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	6
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Wire Gauge	18 AWG

9773 Series

Part	Jacket (Insulation) Material	Conductor Insulation	Cable Type	Length [x]	Length [x]	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Wire Gauge	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Shield Coverage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Features	Shield Material	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage
Belden Inc. 9773 060100	Poly-Vinyl Chloride (PVC)	Polypropylene (PP)	Multi-Pair	30.5 m	100 ft	Copper Tinned	-20 C	80 C	6	18 AWG	Chrome	19	30 AWG	100 %	0.889 mm	0.035 in	Drain Wire	Aluminum	Foil	0.404 in	10.26 mm	Audio Control Instrumentation
Belden Inc. 9773 060500	Poly-Vinyl Chloride (PVC)	Polypropylene (PP)	Multi-Pair	152.4 m	500 '	Copper Tinned	-20 C	80 C	6	18 AWG	Chrome	19	30 AWG	100 %	0.889 mm	0.035 in	Drain Wire	Aluminum	Foil	0.404 in	10.26 mm	Audio Control Instrumentation

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 4.59
		1000	$ 4.36
		1500	$ 4.22

Description

General part information

9773 Series

The 9773 060500 is a 3-pair Shielded Cable with 18AWG stranded tinned copper conductors and polypropylene insulation. This twisted pair multi-conductor cable comes with a Beldfoil® aluminum foil-polyester tape shield (100% coverage), 20AWG stranded tinned copper drain wire and chrome PVC jacket. Belden multi-conductor cable delivers low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.
