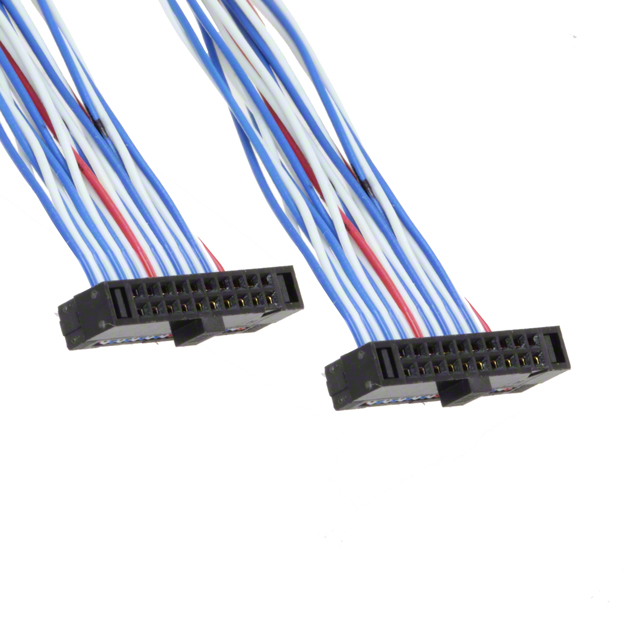

FFTP-10-D-18.00-01-N

Active

Samtec Inc.

.050 X .050 C/L TWISTED PAIR FEM

Search across all available documentation for this part.

Active

Samtec Inc.

.050 X .050 C/L TWISTED PAIR FEM

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish Thickness	Contact Finish Thickness	Length [x]	Length [x]	Pitch - Connector	Pitch - Connector	Cable Termination	Connector Type	Color	Features	Number of Positions	Number of Rows	Pitch - Cable [x]	Pitch - Cable	Contact Finish	Shielding	Length	Length	Length
Samtec Inc. FFTP-10-D-18.00-01-N	10 Áin	0.25 Ám	457.2 mm	1.5 ft	0.05 in	1.27 mm	IDC	Socket to Socket	Multiple Twisted Pair (Round)	Polarizing Key	20	2	0.025 in	0.64 mm	Gold	Unshielded
Samtec Inc. FFTP-10-D-03.85-01-N-R	10 Áin	0.25 Ám			0.05 in	1.27 mm	IDC	Socket to Socket Reversed	Multiple Twisted Pair (Round)	Polarizing Key	20	2	0.025 in	0.64 mm	Gold	Unshielded	3.85 "	0.321 '	97.79 mm
Samtec Inc. FFTP-10-D-18.00-01-N-R	10 Áin	0.25 Ám	457.2 mm	1.5 ft	0.05 in	1.27 mm	IDC	Socket to Socket Reversed	Multiple Twisted Pair (Round)	Polarizing Key	20	2	0.025 in	0.64 mm	Gold	Unshielded
Samtec Inc. FFTP-10-D-18.00-01-F-N	10 Áin	0.25 Ám	457.2 mm	1.5 ft	0.05 in	1.27 mm	IDC	Socket to Socket	Multiple Twisted Pair (Round)	Polarizing Key	20	2	0.025 in	0.64 mm	Gold	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Cable Assembly Rectangular Socket to Socket 1.50' (457.20mm)
