9463DB S8Y5000

Active

Belden Inc.

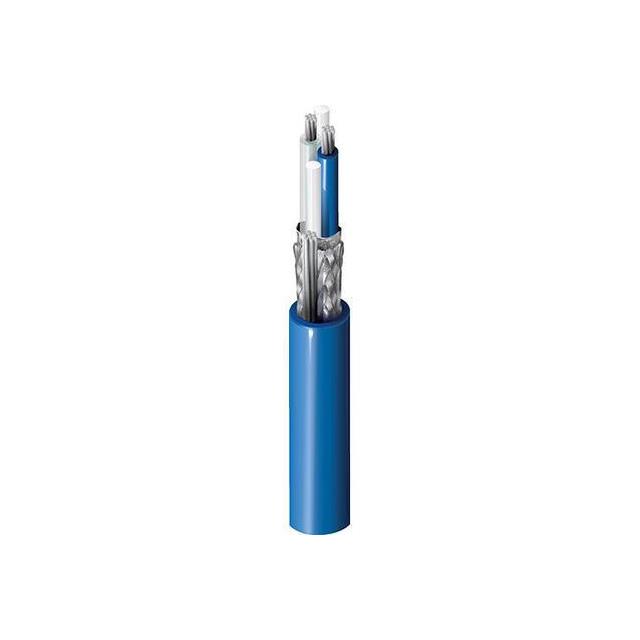

CABLE TWINAXIAL 20AWG

Search across all available documentation for this part.

Active

Belden Inc.

CABLE TWINAXIAL 20AWG

Technical Specifications

Parameters and characteristics for this part

Specification	9463DB S8Y5000

Cable Type	Twinaxial
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	28 AWG
Dielectric Diameter	1.93 mm
Dielectric Diameter	0.076 in
Features	UV Resistant, Direct Burial
Impedance	120 Ohms
Jacket (Insulation) Diameter [diameter]	0.24 in
Jacket (Insulation) Diameter [diameter]	6.1 mm
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP)
Jacket Color	Blue
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Shield Coverage	100 %, 55 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Wire Gauge	20 AWG

Part	Features	Dielectric Diameter	Dielectric Diameter	Wire Gauge	Shield Coverage	Jacket Color	Impedance	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Cable Type	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Conductor Material
Belden Inc. 9463DB S8Y5000	Direct Burial UV Resistant	1.93 mm	0.076 in	20 AWG	55 % 100 %	Blue	120 Ohms	7	28 AWG	Fluorinated Ethylene-Propylene (FEP)	Twinaxial	Braid Foil	0.24 in	6.1 mm	-40 °C	80 C	Aluminum Copper Tinned	Copper Tinned

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 2.86

General part information

Twinaxial Cable 20 AWG 5000.0' (1524.00m) 120 Ohms
