PTG.M0.2GL.MC65G

Active

LEMO

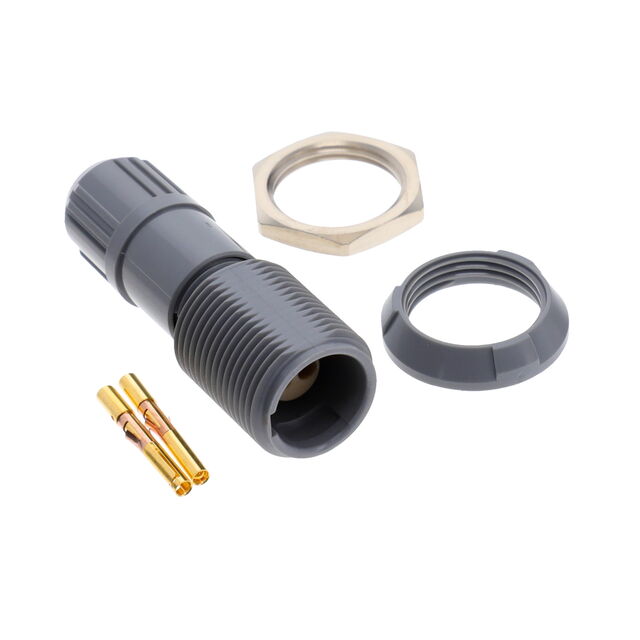

CONN RCPT FMALE 2POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PTG.M0.2GL.MC65G

Active

LEMO

CONN RCPT FMALE 2POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.72
		10	$ 21.65
		25	$ 20.71
		50	$ 20.04
		100	$ 19.38
		250	$ 18.31
		500	$ 17.77

Description

General part information

PTG.M0 Series

2 Position Circular Connector Receptacle, Female Sockets Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PTG.M0.2GL.MC65G	PTG.M0 Series

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement	Medical, Industrial, Automotive, Testing Equipment & Measurement
Backshell Material, Plating	Polysulfone (PSU)	Polysulfone (PSU)
Cable Opening	-	0.157 in
Cable Opening	-	0.205 in
Cable Opening	-	4 mm
Cable Opening	-	5.2 mm
Cable Opening	-	2.7 mm
Cable Opening	-	0.154 in
Cable Opening	-	3.9 mm
Cable Opening	-	0.106 in
Cable Opening [custom]	0.209 in, 0.256 in	0.209 - 0.256 in
Cable Opening [custom]	6.5 mm, 5.3 mm	5.3 - 6.5 mm
Color	Gray	Gray, Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Current Rating (Amps)	10 A	3 - 10 A
Fastening Type	Detent Lock, Push-Pull	Detent Lock, Push-Pull
Features	Backshell	Backshell
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Feature	Front and Rear Side Nut	Front and Rear Side Nut
Mounting Type	Free Hanging (In-Line), Panel Mount	Free Hanging (In-Line), Panel Mount
Number of Positions	2	2 - 9
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-50 °C	-50 °C
Orientation	G	G
Primary Material	Plastic	Plastic
Shell Material	Polysulfone (PSU)	Polysulfone (PSU)
Shell Size - Insert	M02	M08, M02, M09, M06, M04
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp

PTG.M0 Series

CONN RCPT FMALE 8P GOLD SLDR CUP

Part	Insert Material	Fastening Type	Features	Contact Finish - Mating	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Primary Material	Shell Size - Insert	Shell Material	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Connector Type	Shielding	Backshell Material, Plating	Ingress Protection	Orientation	Color	Mounting Type	Number of Positions	Current Rating (Amps)	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [custom]	Cable Opening [custom]
LEMO PTG.M0.8GL.LC52G	Polyetheretherketone (PEEK)	Detent Lock, Push-Pull	Backshell	Gold	0.157 in	0.205 in	4 mm	5.2 mm	Plastic	M08	Polysulfone (PSU)	Automotive, Industrial, Medical, Testing Equipment & Measurement	150 °C	-50 °C	Front and Rear Side Nut	Receptacle, Female Sockets	Unshielded	Polysulfone (PSU)	IP50	G	Gray	Free Hanging (In-Line), Panel Mount	8	5 A
LEMO PTG.M0.2GL.LC39G	Polyetheretherketone (PEEK)	Detent Lock, Push-Pull	Backshell	Gold					Plastic	M02	Polysulfone (PSU)	Automotive, Industrial, Medical, Testing Equipment & Measurement	150 °C	-50 °C	Front and Rear Side Nut	Receptacle, Female Sockets	Unshielded	Polysulfone (PSU)	IP50	G	Gray	Free Hanging (In-Line), Panel Mount	2	10 A	2.7 mm	0.154 in	3.9 mm	0.106 in
LEMO PTG.M0.9GL.LC39G	Polyetheretherketone (PEEK)	Detent Lock, Push-Pull	Backshell	Gold					Plastic	M09	Polysulfone (PSU)	Automotive, Industrial, Medical, Testing Equipment & Measurement	150 °C	-50 °C	Front and Rear Side Nut	Receptacle, Female Sockets	Unshielded	Polysulfone (PSU)	IP50	G	Gray	Free Hanging (In-Line), Panel Mount	9	3 A	2.7 mm	0.154 in	3.9 mm	0.106 in
LEMO PTG.M0.6NL.LC52N	Polyetheretherketone (PEEK)	Detent Lock, Push-Pull	Backshell	Gold	0.157 in	0.205 in	4 mm	5.2 mm	Plastic	M06	Polysulfone (PSU)	Automotive, Industrial, Medical, Testing Equipment & Measurement	150 °C	-50 °C	Front and Rear Side Nut	Receptacle, Female Sockets	Unshielded	Polysulfone (PSU)	IP50	G	Black	Free Hanging (In-Line), Panel Mount	6	6 A
LEMO PTG.M0.8GL.LC65G	Polyetheretherketone (PEEK)	Detent Lock, Push-Pull	Backshell	Gold					Plastic	M08	Polysulfone (PSU)	Automotive, Industrial, Medical, Testing Equipment & Measurement	150 °C	-50 °C	Front and Rear Side Nut	Receptacle, Female Sockets	Unshielded	Polysulfone (PSU)	IP50	G	Gray	Free Hanging (In-Line), Panel Mount	8	5 A					0.209 in, 0.256 in	5.3 mm, 6.5 mm
LEMO PTG.M0.6NL.LC65NZ	Polyetheretherketone (PEEK)	Detent Lock, Push-Pull	Backshell	Gold					Plastic	M06	Polysulfone (PSU)	Automotive, Industrial, Medical, Testing Equipment & Measurement	150 °C	-50 °C	Front and Rear Side Nut	Receptacle, Female Sockets	Unshielded	Polysulfone (PSU)	IP50	G	Black	Free Hanging (In-Line), Panel Mount	6	6 A					0.209 in, 0.256 in	5.3 mm, 6.5 mm
LEMO PTG.M0.6GL.LC65N	Polyetheretherketone (PEEK)	Detent Lock, Push-Pull	Backshell	Gold					Plastic	M06	Polysulfone (PSU)	Automotive, Industrial, Medical, Testing Equipment & Measurement	150 °C	-50 °C	Front and Rear Side Nut	Receptacle, Female Sockets	Unshielded	Polysulfone (PSU)	IP50	G		Free Hanging (In-Line), Panel Mount	6	6 A					0.209 in, 0.256 in	5.3 mm, 6.5 mm
LEMO PTG.M0.4GL.LC52G	Polyetheretherketone (PEEK)	Detent Lock, Push-Pull	Backshell	Gold	0.157 in	0.205 in	4 mm	5.2 mm	Plastic	M04	Polysulfone (PSU)	Automotive, Industrial, Medical, Testing Equipment & Measurement	150 °C	-50 °C	Front and Rear Side Nut	Receptacle, Female Sockets	Unshielded	Polysulfone (PSU)	IP50	G	Gray	Free Hanging (In-Line), Panel Mount	4	8 A
LEMO PTG.M0.6GL.LC65G	Polyetheretherketone (PEEK)	Detent Lock, Push-Pull	Backshell	Gold					Plastic	M06	Polysulfone (PSU)	Automotive, Industrial, Medical, Testing Equipment & Measurement	150 °C	-50 °C	Front and Rear Side Nut	Receptacle, Female Sockets	Unshielded	Polysulfone (PSU)	IP50	G	Gray	Free Hanging (In-Line), Panel Mount	6	6 A					0.209 in, 0.256 in	5.3 mm, 6.5 mm
LEMO PTG.M0.9GL.LC65G	Polyetheretherketone (PEEK)	Detent Lock, Push-Pull	Backshell	Gold					Plastic	M09	Polysulfone (PSU)	Automotive, Industrial, Medical, Testing Equipment & Measurement	150 °C	-50 °C	Front and Rear Side Nut	Receptacle, Female Sockets	Unshielded	Polysulfone (PSU)	IP50	G	Gray	Free Hanging (In-Line), Panel Mount	9	3 A					0.209 in, 0.256 in	5.3 mm, 6.5 mm
