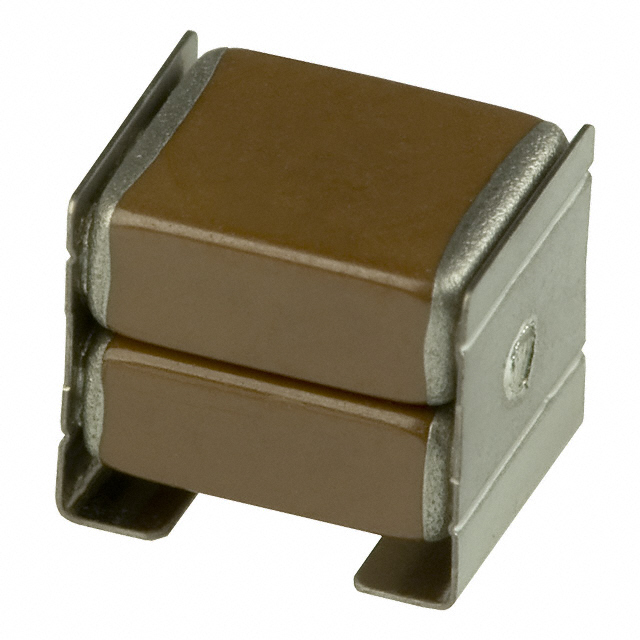

Specification	CKG45NX7R1C226M500JH

Applications	SMPS Filtering, Bypass, Decoupling
Capacitance	22 µF
Features	Low ESL (Stacked)
Lead Style	J-Lead
Mounting Type	Surface Mount, MLCC
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package / Case	2 J-Lead, Stacked SMD
Size / Dimension Length	0.197 in
Size / Dimension Width	0.138 in
Temperature Coefficient	X7R
Thickness (Max)	0.217 in
Tolerance	20 %
Voltage - Rated	16 V
