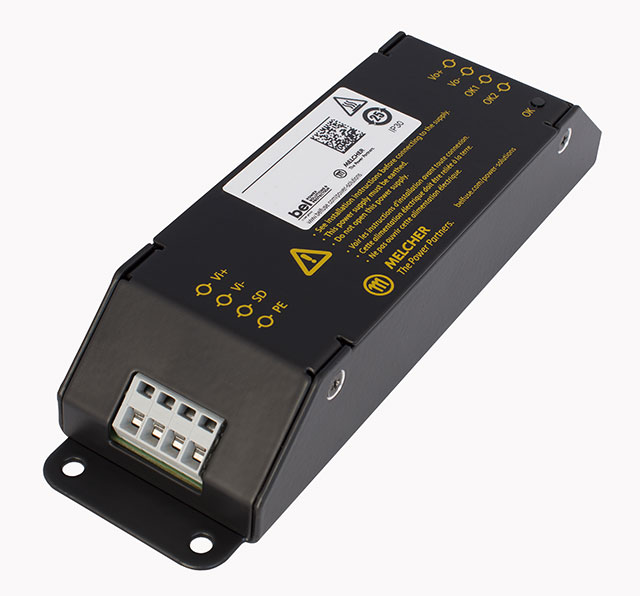

XRCM60-12
ActiveBel Power Solutions
DC-DC CONVERTER, 12V, 5A ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
XRCM60-12
ActiveBel Power Solutions
DC-DC CONVERTER, 12V, 5A ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | XRCM60-12 | XRCM60 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Approval Agency | cCSAus, CE | cCSAus, CE |
| Current - Output (Max) [Max] | 5 A | 2.5 - 5 A |
| Efficiency | 87 % | 87 - 88 % |
| Mounting Type | Chassis Mount | Chassis Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size / Dimension [x] | 6.77 in | 6.77 in |
| Size / Dimension [x] | 172 mm | 172 mm |
| Size / Dimension [y] | 50 mm | 50 mm |
| Size / Dimension [y] | 1.97 " | 1.97 " |
| Size / Dimension [z] | 32 mm | 32 mm |
| Size / Dimension [z] | 1.26 in | 1.26 in |
| Type | Conformal Coated, Enclosed | Conformal Coated, Enclosed |
| Voltage - Input (Max) [Max] | 137.5 V | 137.5 V |
| Voltage - Input (Min) [Min] | 16.8 V | 16.8 V |
| Voltage - Isolation | 4.2 kV | 4.2 kV |
| Voltage - Output 1 | 12 V | 12 - 24 V |
XRCM60 Series
DC-DC CONVERTER, 15V, 4A ROHS COMPLIANT: YES
| Part | Current - Output (Max) [Max] | Number of Outputs | Type | Approval Agency | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Isolation | Efficiency | Voltage - Output 1 | Voltage - Input (Max) [Max] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Input (Min) [Min] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bel Power Solutions XRCM60-15 | 4 A | 1 | Conformal Coated, Enclosed | cCSAus, CE | ITE (Commercial) | -40 °C | 70 °C | 4.2 kV | 88 % | 15 V | 137.5 V | 32 mm | 1.26 in | 50 mm | 6.77 in | 1.97 " | 172 mm | 16.8 V | Chassis Mount |
Bel Power Solutions XRCM60-12 | 5 A | 1 | Conformal Coated, Enclosed | cCSAus, CE | ITE (Commercial) | -40 °C | 70 °C | 4.2 kV | 87 % | 12 V | 137.5 V | 32 mm | 1.26 in | 50 mm | 6.77 in | 1.97 " | 172 mm | 16.8 V | Chassis Mount |
Bel Power Solutions XRCM60-24 | 2.5 A | 1 | Conformal Coated, Enclosed | cCSAus, CE | ITE (Commercial) | -40 °C | 70 °C | 4.2 kV | 88 % | 24 V | 137.5 V | 32 mm | 1.26 in | 50 mm | 6.77 in | 1.97 " | 172 mm | 16.8 V | Chassis Mount |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
XRCM60 Series
Enclosed, Conformal Coated DC DC Converter 1 Output 12V 5A 137.5V Input
