6-104069-1
ActiveTE Connectivity AMP Connectors

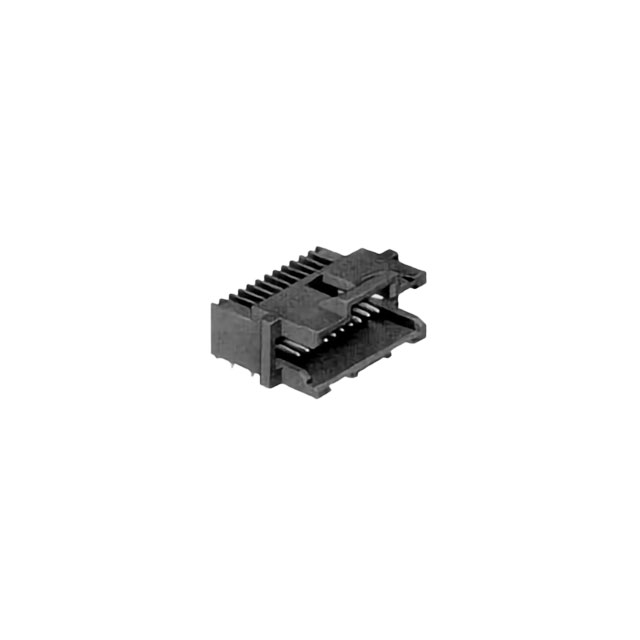

CONN HEADER R/A 16POS 1.27MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6-104069-1
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 16POS 1.27MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 6-104069-1 | 104069 Series |
|---|---|---|
| Applications | Medical, General Purpose, Automotive, Telecommunications | Medical, General Purpose, Automotive, Telecommunications |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin, Tin-Lead |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 150 Áin | 150 Áin |
| Contact Finish Thickness - Post | 3.81 Ám | 3.81 Ám |
| Contact Length - Mating | 0.125 in | 0.125 in |
| Contact Length - Mating | 3.18 mm | 3.18 mm |
| Contact Length - Post | 2.54 mm | 2.54 mm |
| Contact Length - Post | 0.1 in | 0.1 in |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Circular | Circular |
| Contact Type | Male Pin | Male Pin |
| Fastening Type | Latch Holder | Latch Holder |
| Features | Board Guide | Board Guide |
| Insulation Color | Black | Black |
| Insulation Height | 7.37 mm | 7.37 mm |
| Insulation Height | 0.29 in | 0.29 in |
| Insulation Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 16 | 16 |
| Number of Positions | - | 10 - 100 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.05 in | 0.05 in |
| Pitch - Mating | 1.27 mm | 1.27 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Shrouding | Shrouded - 2 Wall | Shrouded - 2 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
| Voltage Rating | 30 VAC | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 6.24 | |
| 31 | $ 5.33 | |||
| 124 | $ 4.90 | |||
| 527 | $ 4.55 | |||
| 1023 | $ 4.07 | |||
104069 Series
CONN HEADER R/A 50POS 1.27MM
| Part | Contact Length - Post | Contact Length - Post | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Shrouding | Contact Material | Termination | Material Flammability Rating | Style | Contact Shape | Voltage Rating | Applications | Contact Length - Mating | Contact Length - Mating | Insulation Color | Number of Positions | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Fastening Type | Number of Rows | Number of Positions Loaded | Insulation Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Finish - Mating | Features | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Connector Type | Contact Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-104069-2 | 2.54 mm | 0.1 in | Tin | -65 ░C | 105 ░C | Through Hole, Right Angle | Shrouded - 2 Wall | Copper Alloy | Solder | UL94 V-0 | Board to Board, Cable | Circular | 30 VAC | Automotive, General Purpose, Medical, Telecommunications | 0.125 in | 3.18 mm | Black | 50 | 150 Áin | 3.81 Ám | Latch Holder | 2 | All | Thermoplastic | 30 Áin | 0.76 Ám | 2.54 mm | 0.1 in | Gold | Board Guide | 0.05 in | 1.27 mm | 7.37 mm | 0.29 in | Header | Male Pin | |
TE Connectivity AMP Connectors 1-104069-6 | 2.54 mm | 0.1 in | Tin-Lead | -65 ░C | 105 ░C | Through Hole, Right Angle | Shrouded - 2 Wall | Copper Alloy | Solder | UL94 V-0 | Board to Board, Cable | Circular | 30 VAC | Automotive, General Purpose, Medical, Telecommunications | 0.125 in | 3.18 mm | Black | 72 | 150 Áin | 3.81 Ám | Latch Holder | 2 | All | Thermoplastic | 30 Áin | 0.76 Ám | 2.54 mm | 0.1 in | Gold | Board Guide | 0.05 in | 1.27 mm | 7.37 mm | 0.29 in | Header | Male Pin | |
TE Connectivity AMP Connectors 5-104069-4 | 2.54 mm | 0.1 in | Tin | -65 ░C | 105 ░C | Through Hole, Right Angle | Shrouded - 2 Wall | Copper Alloy | Solder | UL94 V-0 | Board to Board, Cable | Circular | 30 VAC | Automotive, General Purpose, Medical, Telecommunications | 0.125 in | 3.18 mm | Black | 10 | 150 Áin | 3.81 Ám | Latch Holder | 2 | All | Thermoplastic | 30 Áin | 0.76 Ám | 2.54 mm | 0.1 in | Gold | Board Guide | 0.05 in | 1.27 mm | 7.37 mm | 0.29 in | Header | Male Pin | |
TE Connectivity AMP Connectors 6-104069-0 | 2.54 mm | 0.1 in | Tin | -65 ░C | 105 ░C | Through Hole, Right Angle | Shrouded - 2 Wall | Copper Alloy | Solder | UL94 V-0 | Board to Board, Cable | Circular | 30 VAC | Automotive, General Purpose, Medical, Telecommunications | 0.125 in | 3.18 mm | Black | 14 | 150 Áin | 3.81 Ám | Latch Holder | 2 | All | Thermoplastic | 30 Áin | 0.76 Ám | 2.54 mm | 0.1 in | Gold | Board Guide | 0.05 in | 1.27 mm | 7.37 mm | 0.29 in | Header | Male Pin | |
TE Connectivity AMP Connectors 1-104069-7 | 2.54 mm | 0.1 in | Tin-Lead | -65 ░C | 105 ░C | Through Hole, Right Angle | Shrouded - 2 Wall | Copper Alloy | Solder | UL94 V-0 | Board to Board, Cable | Circular | 30 VAC | Automotive, General Purpose, Medical, Telecommunications | 0.125 in | 3.18 mm | Black | 100 | 150 Áin | 3.81 Ám | Latch Holder | 2 | All | Thermoplastic | 30 Áin | 0.76 Ám | 2.54 mm | 0.1 in | Gold | Board Guide | 0.05 in | 1.27 mm | 7.37 mm | 0.29 in | Header | Male Pin | |
TE Connectivity AMP Connectors 104069-5 | 2.54 mm | 0.1 in | Tin-Lead | -65 ░C | 105 ░C | Through Hole, Right Angle | Shrouded - 2 Wall | Copper Alloy | Solder | UL94 V-0 | Board to Board, Cable | Circular | 30 VAC | Automotive, General Purpose, Medical, Telecommunications | 0.125 in | 3.18 mm | Black | 30 | 150 Áin | 3.81 Ám | Latch Holder | 2 | All | Thermoplastic | 30 Áin | 0.76 Ám | 2.54 mm | 0.1 in | Gold | Board Guide | 0.05 in | 1.27 mm | 7.37 mm | 0.29 in | Header | Male Pin | |
TE Connectivity AMP Connectors 5-104069-6 | 2.54 mm | 0.1 in | Tin | -65 ░C | 105 ░C | Through Hole, Right Angle | Shrouded - 2 Wall | Copper Alloy | Solder | UL94 V-0 | Board to Board, Cable | Circular | 30 VAC | Automotive, General Purpose, Medical, Telecommunications | 0.125 in | 3.18 mm | Black | 40 | 150 Áin | 3.81 Ám | Latch Holder | 2 | All | Thermoplastic | 30 Áin | 0.76 Ám | 2.54 mm | 0.1 in | Gold | Board Guide | 0.05 in | 1.27 mm | 7.37 mm | 0.29 in | Header | Male Pin | |
TE Connectivity AMP Connectors 5-104069-7 | 2.54 mm | 0.1 in | Tin | -65 ░C | 105 ░C | Through Hole, Right Angle | Shrouded - 2 Wall | Copper Alloy | Solder | UL94 V-0 | Board to Board, Cable | Circular | 30 VAC | Automotive, General Purpose, Medical, Telecommunications | 0.125 in | 3.18 mm | Black | 60 | 150 Áin | 3.81 Ám | Latch Holder | 2 | All | Thermoplastic | 30 Áin | 0.76 Ám | 2.54 mm | 0.1 in | Gold | Board Guide | 0.05 in | 1.27 mm | 7.37 mm | 0.29 in | Header | Male Pin | |
TE Connectivity AMP Connectors 5-104069-5 | 2.54 mm | 0.1 in | Tin | -65 ░C | 105 ░C | Through Hole, Right Angle | Shrouded - 2 Wall | Copper Alloy | Solder | UL94 V-0 | Board to Board, Cable | Circular | 30 VAC | Automotive, General Purpose, Medical, Telecommunications | 0.125 in | 3.18 mm | Black | 30 | 150 Áin | 3.81 Ám | Latch Holder | 2 | All | Thermoplastic | 30 Áin | 0.76 Ám | 2.54 mm | 0.1 in | Gold | Board Guide | 0.05 in | 1.27 mm | 7.37 mm | 0.29 in | Header | Male Pin | |
TE Connectivity AMP Connectors 6-104069-7 | 2.54 mm | 0.1 in | Tin | -65 ░C | 105 ░C | Through Hole, Right Angle | Shrouded - 2 Wall | Copper Alloy | Solder | UL94 V-0 | Board to Board, Cable | Circular | 30 VAC | Automotive, General Purpose, Medical, Telecommunications | 0.125 in | 3.18 mm | Black | 100 | 150 Áin | 3.81 Ám | Latch Holder | 2 | All | Thermoplastic | 30 Áin | 0.76 Ám | 2.54 mm | 0.1 in | Gold | Board Guide | 0.05 in | 1.27 mm | 7.37 mm | 0.29 in | Header | Male Pin | |
TE Connectivity AMP Connectors 6-104069-3 | 2.54 mm | 0.1 in | Tin | -65 ░C | 105 ░C | Through Hole, Right Angle | Shrouded - 2 Wall | Copper Alloy | Solder | UL94 V-0 | Board to Board, Cable | Circular | 30 VAC | Automotive, General Purpose, Medical, Telecommunications | 0.125 in | 3.18 mm | Black | 26 | 150 Áin | 3.81 Ám | Latch Holder | 2 | All | Thermoplastic | 30 Áin | 0.76 Ám | 2.54 mm | 0.1 in | Gold | Board Guide | 0.05 in | 1.27 mm | 7.37 mm | 0.29 in | Header | Male Pin | |
TE Connectivity AMP Connectors 6-104069-1 | 2.54 mm | 0.1 in | Tin | -65 ░C | 105 ░C | Through Hole, Right Angle | Shrouded - 2 Wall | Copper Alloy | Solder | UL94 V-0 | Board to Board, Cable | Circular | 30 VAC | Automotive, General Purpose, Medical, Telecommunications | 0.125 in | 3.18 mm | Black | 150 Áin | 3.81 Ám | Latch Holder | 2 | All | Thermoplastic | 30 Áin | 0.76 Ám | 2.54 mm | 0.1 in | Gold | Board Guide | 0.05 in | 1.27 mm | 7.37 mm | 0.29 in | Header | Male Pin | 16 | |
TE Connectivity AMP Connectors 1-104069-1 | 2.54 mm | 0.1 in | Tin-Lead | -65 ░C | 105 ░C | Through Hole, Right Angle | Shrouded - 2 Wall | Copper Alloy | Solder | UL94 V-0 | Board to Board, Cable | Circular | 30 VAC | Automotive, General Purpose, Medical, Telecommunications | 0.125 in | 3.18 mm | Black | 150 Áin | 3.81 Ám | Latch Holder | 2 | All | Thermoplastic | 30 Áin | 0.76 Ám | 2.54 mm | 0.1 in | Gold | Board Guide | 0.05 in | 1.27 mm | 7.37 mm | 0.29 in | Header | Male Pin | 16 | |
TE Connectivity AMP Connectors 1-104069-0 | 2.54 mm | 0.1 in | Tin-Lead | -65 ░C | 105 ░C | Through Hole, Right Angle | Shrouded - 2 Wall | Copper Alloy | Solder | UL94 V-0 | Board to Board, Cable | Circular | 30 VAC | Automotive, General Purpose, Medical, Telecommunications | 0.125 in | 3.18 mm | Black | 14 | 150 Áin | 3.81 Ám | Latch Holder | 2 | All | Thermoplastic | 30 Áin | 0.76 Ám | 2.54 mm | 0.1 in | Gold | Board Guide | 0.05 in | 1.27 mm | 7.37 mm | 0.29 in | Header | Male Pin | |
TE Connectivity AMP Connectors 1-104069-8 | 2.54 mm | 0.1 in | Tin-Lead | -65 ░C | 105 ░C | Through Hole, Right Angle | Shrouded - 2 Wall | Copper Alloy | Solder | UL94 V-0 | Board to Board, Cable | Circular | 30 VAC | Automotive, General Purpose, Medical, Telecommunications | 0.125 in | 3.18 mm | Black | 68 | 150 Áin | 3.81 Ám | Latch Holder | 2 | All | Thermoplastic | 30 Áin | 0.76 Ám | 2.54 mm | 0.1 in | Gold | Board Guide | 0.05 in | 1.27 mm | 7.37 mm | 0.29 in | Header | Male Pin | |
TE Connectivity AMP Connectors 5-104069-3 | 2.54 mm | 0.1 in | Tin | -65 ░C | 105 ░C | Through Hole, Right Angle | Shrouded - 2 Wall | Copper Alloy | Solder | UL94 V-0 | Board to Board, Cable | Circular | 30 VAC | Automotive, General Purpose, Medical, Telecommunications | 0.125 in | 3.18 mm | Black | 80 | 150 Áin | 3.81 Ám | Latch Holder | 2 | All | Thermoplastic | 30 Áin | 0.76 Ám | 2.54 mm | 0.1 in | Gold | Board Guide | 0.05 in | 1.27 mm | 7.37 mm | 0.29 in | Header | Male Pin |
Description
General part information
104069 Series
Connector Header Through Hole, Right Angle 16 position 0.050" (1.27mm)
