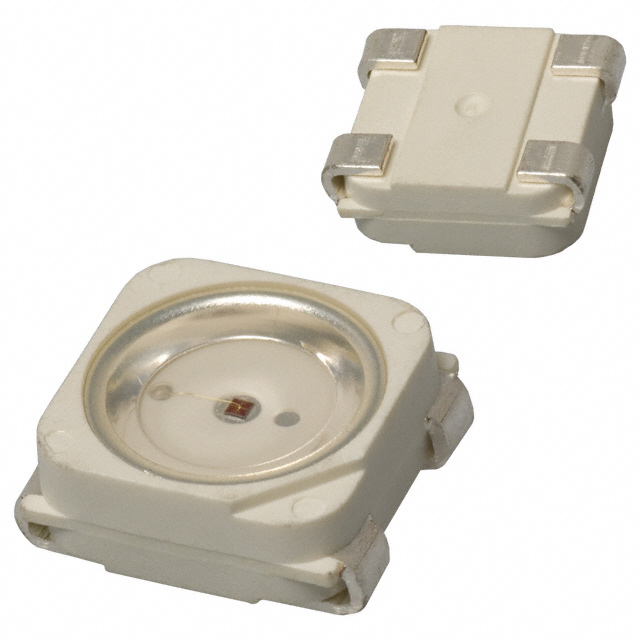

SML-LX1110UPGC-ATR
ObsoleteLumex Opto/Components Inc.
LED TITANBRITE GREEN 525NM 4PLCC
SML-LX1110UPGC-ATR
ObsoleteLumex Opto/Components Inc.
LED TITANBRITE GREEN 525NM 4PLCC
Description
General part information
SML-LX1110UPGC-ATR
LED Lighting Color TitanBrite™ Green 525nm (Typ) 4-SMD, J-Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | SML-LX1110UPGC-ATR |
|---|---|
| Color | Green |
| Current - Max | 350 mA |
| Current - Test | 350 mA |
| Height - Seated (Max) | 0.173 in |
| Lumens/Watt | 51 lm/W |
| Luminous Flux (Typical) | 63 lm |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, J-Lead |
| Package Name | 4-PLCC |
| Size / Dimension Length | 0.394 in |
| Size / Dimension Width | 0.394 in |
| Temperature - Test | 25 °C |
| Thermal Resistance of Package | 47 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.5 V |
| Wavelength (Typ) | 525 nm |
