CT3313
ActiveCal Test Electronics
COAX ADAPT BNC TO BNC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CT3313
ActiveCal Test Electronics
COAX ADAPT BNC TO BNC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CT3313 | - Series |
|---|---|---|
| Adapter Series | BNC to BNC | N to N, Dual, N to N, BNC to BNC, SMA to SMA, Dual, BNC to N |
| Adapter Type | Plug to Jack | Jack to Jack, Plug to Jack, Plug to Plug |
| Body Finish | Nickel | Nickel, White Bronze, Gold |
| Body Material | Brass | Brass |
| Center Contact Material | Brass, Beryllium Copper | Brass, Beryllium Copper |
| Center Contact Plating | Gold | Gold |
| Center Gender | - | Female to Female, Male to Male |
| Connector Style | - | N Type |
| Connector Type | - | Male Pin, Plug |
| Contact Finish | - | Gold |
| Conversion Type | Same Series | Same Series, Between Series |
| Convert From (Adapter End) | BNC Plug, Male Pin | N Jack, Female Socket, BNC Plug, Male Pin, SMA Plug, Male Pin, BNC Jack, N Plug, Male Pin |
| Convert To (Adapter End) | Female Socket, BNC Jack | N Jack, Female Socket (2), Female Socket, BNC Jack, SMA Plug, Male Pin, SMA Jack, N Plug |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock | Bayonet Lock, Threaded |
| Frequency - Max [Max] | 4 GHz | 4 - 12.4 GHz |
| Impedance | 50 Ohms | 50 Ohms |
| Insertion Loss | 0.2 dB | 0.2 dB |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle, Free Hanging, Cap |
| Operating Temperature | - | -65 - -20 C |
| Operating Temperature | - | 80 - 165 C |
| Style | Right Angle | T-Shape, Straight, Right Angle |
- Series
CONN TYPE N-TRIAXIAL ADAPTER 0HZ TO 8GHZ 50OHM T STYLE (3)RCP GOLD BAG
| Part | Impedance | Body Finish | Dielectric Material | Body Material | Convert To (Adapter End) | Center Contact Material | Adapter Type | Adapter Series | Mounting Type | Style | Center Contact Plating | Center Gender | Operating Temperature [Min] | Operating Temperature [Max] | Convert From (Adapter End) | Frequency - Max [Max] | Conversion Type | Fastening Type | Insertion Loss | Contact Finish | Connector Type | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cal Test Electronics CT2761 | 50 Ohms | Nickel | Polytetrafluoroethylene (PTFE) | Brass | Female Socket (2), N Jack | Brass | Jack to Jack | N to N, Dual | Free Hanging (In-Line) | T-Shape | Gold | Female to Female | -20 C | 80 C | Female Socket, N Jack | 8 GHz | Same Series | |||||
Cal Test Electronics CT3350 | 50 Ohms | White Bronze | Polytetrafluoroethylene (PTFE) | Brass | Female Socket, N Jack | Beryllium Copper, Brass | Jack to Jack | N to N | Free Hanging (In-Line) | Straight | Gold | Female to Female | Female Socket, N Jack | 11 GHz | Same Series | |||||||
Cal Test Electronics CT3313 | 50 Ohms | Nickel | Polytetrafluoroethylene (PTFE) | Brass | BNC Jack, Female Socket | Beryllium Copper, Brass | Plug to Jack | BNC to BNC | Free Hanging (In-Line), Right Angle | Right Angle | Gold | BNC Plug, Male Pin | 4 GHz | Same Series | Bayonet Lock | 0.2 dB | ||||||
Cal Test Electronics CT3395 | 50 Ohms | Gold | Polytetrafluoroethylene (PTFE) | Brass | Male Pin, SMA Plug | Beryllium Copper, Brass | Plug to Plug | SMA to SMA | Free Hanging (In-Line) | Straight | Gold | Male to Male | -65 ░C | 165 °C | SMA Plug, Male Pin | 12.4 GHz | Same Series | |||||
Cal Test Electronics CT2411 | 50 Ohms | Nickel | Polytetrafluoroethylene (PTFE) | Brass | BNC Jack, Female Socket (2) | Brass | Plug to Jack | BNC to BNC, Dual | Free Hanging (In-Line) | T-Shape | Gold | -20 C | 80 C | BNC Plug, Male Pin | 4 GHz | Same Series | Bayonet Lock | 0.2 dB | ||||
Cal Test Electronics CT3367 | 50 Ohms | Cap, Free Hanging | Gold | Male Pin, Plug | N Type | |||||||||||||||||
Cal Test Electronics CT3319 | 50 Ohms | White Bronze | Polytetrafluoroethylene (PTFE) | Brass | Female Socket (2), N Jack | Beryllium Copper, Brass | Jack to Jack | N to N | Free Hanging (In-Line) | T-Shape | Gold | Female to Female | -55 °C | 155 °C | Female Socket, N Jack | 11 GHz | Same Series | |||||
Cal Test Electronics CT2771 | 50 Ohms | Nickel | Polytetrafluoroethylene (PTFE) | Brass | Female Socket, N Jack | Beryllium Copper, Brass | Jack to Jack | BNC to N | Free Hanging (In-Line) | Straight | Gold | Female to Female | -20 C | 80 C | BNC Jack, Female Socket | 4 GHz | Between Series | Bayonet Lock, Threaded | 0.2 dB | |||
Cal Test Electronics CT3391 | 50 Ohms | Nickel | Polytetrafluoroethylene (PTFE) | Brass | Female Socket, SMA Jack | Beryllium Copper, Brass | Plug to Jack | Free Hanging (In-Line) | Straight | Gold | N Plug, Male Pin | 11 GHz | Between Series | |||||||||
Cal Test Electronics CT3344 | 50 Ohms | White Bronze | Polytetrafluoroethylene (PTFE) | Brass | BNC Jack, Female Socket (2) | Beryllium Copper, Brass | Jack to Jack | BNC to BNC, Dual | Free Hanging (In-Line) | T-Shape | Gold | Female to Female | BNC Jack, Female Socket | 10 GHz | Same Series | Bayonet Lock |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.00 | |
Description
General part information
- Series

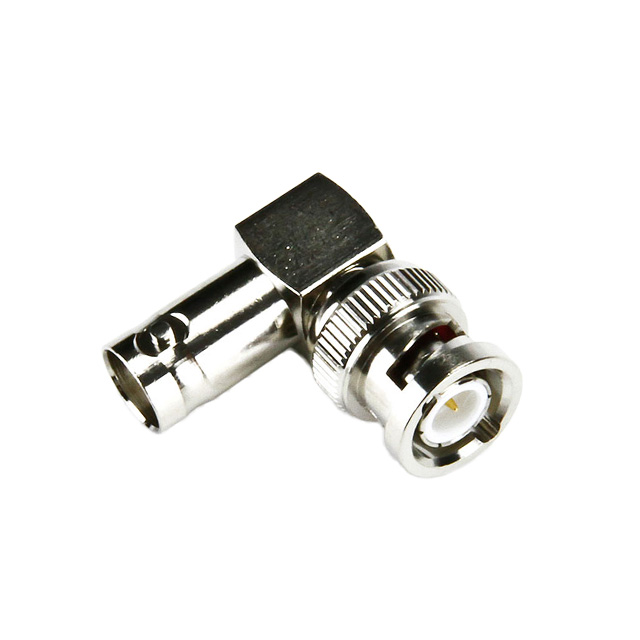

Adapter Coaxial Connector BNC Plug, Male Pin To BNC Jack, Female Socket 50 Ohms
