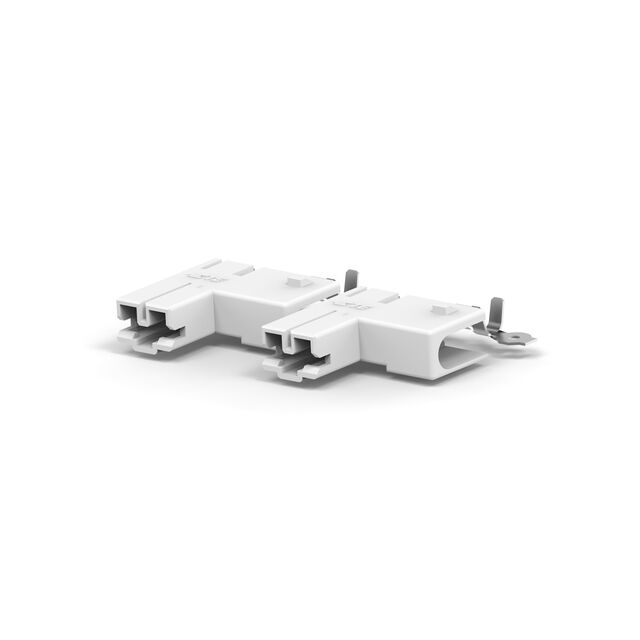

3-2299287-2
ActiveTE Connectivity Raychem Cable Protection
POD-LOK 187 FLAG AWG 20-16 PTPB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3-2299287-2
ActiveTE Connectivity Raychem Cable Protection
POD-LOK 187 FLAG AWG 20-16 PTPB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-2299287-2 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Mating End Insulated |
| Insulation Diameter [Max] | 3.3 mm |
| Insulation Diameter [Max] | 0.13 in |
| Insulation Diameter [Min] | 2.29 mm |
| Insulation Diameter [Min] | 0.09 in |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Tab Thickness | 0.02 " |
| Tab Thickness | 0.51 mm |
| Tab Width | 4.75 mm |
| Tab Width | 0.187 in |
| Terminal Type | Flag, Angled - 90° |
| Termination | Crimp |
| Wire Gauge [Max] | 20 AWG |
| Wire Gauge [Min] | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.36 | |
| 10 | $ 0.33 | |||
| 25 | $ 0.32 | |||
| 50 | $ 0.32 | |||
| 100 | $ 0.27 | |||
| 250 | $ 0.24 | |||
| 500 | $ 0.23 | |||
| 1000 | $ 0.20 | |||
| 2500 | $ 0.20 | |||
| Tape & Reel (TR) | 5200 | $ 0.18 | ||
| 10400 | $ 0.17 | |||
Description
General part information
POD-LOK 187 Series
0.187" (4.75mm) Quick Connect Female 16-20 AWG Crimp Connector Mating End Insulated
