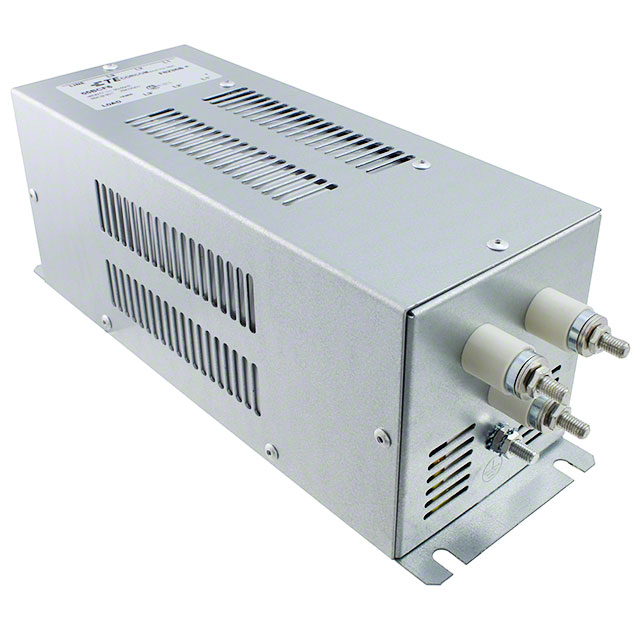

2-1609091-9

Active

TE Connectivity Corcom Filters

LINE FILTER 55A CHASSIS MOUNT

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

LINE FILTER 55A CHASSIS MOUNT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2-1609091-9	1609091 Series

Applications	Power Drive Systems, Inverters	Power Drive Systems, Inverters
Approval Agency	VDE, UR	VDE, UR
Configuration	Two Stage	Two Stage
Current	55 A	30 - 75 A
Filter Type	Three Phase (Delta)	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz	60 Hz
Frequency - Operating [Min]	50 Hz	50 Hz
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [Max] [custom]	50 °C	50 °C
Operating Temperature [Min] [custom]	-10 °C	-10 °C
Termination Style	Threaded Post (M5)	Threaded Post (M5), Threaded Post (M6)
Voltage - Rated AC (Phase to Phase)	480 V	480 V

LINE FILTER 55A CHASSIS MOUNT

Part	Approval Agency	Voltage - Rated AC (Phase to Phase)	Current	Termination Style	Filter Type	Applications	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Configuration	Frequency - Operating [Max]	Frequency - Operating [Min]	Mounting Type
TE Connectivity Corcom Filters 2-1609091-9	UR, VDE	480 V	55 A	Threaded Post (M5)	Three Phase (Delta)	Inverters, Power Drive Systems	-10 °C	50 °C	Two Stage	60 Hz	50 Hz	Chassis Mount
TE Connectivity Corcom Filters 2-1609091-8	UR, VDE	480 V	42 A	Threaded Post (M5)	Three Phase (Delta)	Inverters, Power Drive Systems	-10 °C	50 °C	Two Stage	60 Hz	50 Hz	Chassis Mount
TE Connectivity Corcom Filters 3-1609091-0	UR, VDE	480 V	75 A	Threaded Post (M6)	Three Phase (Delta)	Inverters, Power Drive Systems	-10 °C	50 °C	Two Stage	60 Hz	50 Hz	Chassis Mount
TE Connectivity Corcom Filters 2-1609091-7	UR, VDE	480 V	30 A	Threaded Post (M5)	Three Phase (Delta)	Inverters, Power Drive Systems	-10 °C	50 °C	Two Stage	60 Hz	50 Hz	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Three Phase (Delta) EMC/EMI Line Filter 55 A 50/60Hz Two Stage Threaded Post (M5)
