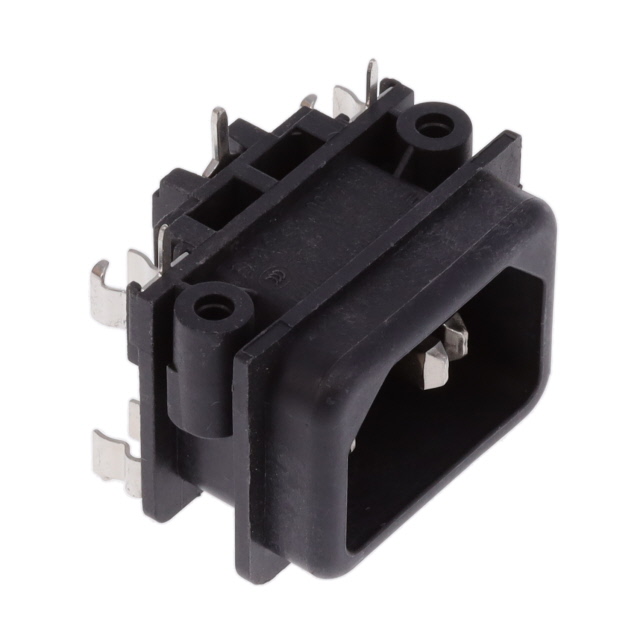

GSF1.2102.01
ActiveSCHURTER Inc.
PWR ENT MOD RCPT IEC320-C14
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GSF1.2102.01
ActiveSCHURTER Inc.
PWR ENT MOD RCPT IEC320-C14
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | GSF1.2102.01 | GSF1.2102 Series |
|---|---|---|
| Accomodates a Fuse | True | True |
| Approval Agency | CCC, UL, CSA, ENEC | CCC, UL, CSA, ENEC |
| Connector Style | IEC 320-C14 | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 10 A | 10 A |
| Filter Type | Unfiltered - Commercial | Unfiltered - Commercial |
| Ingress Protection | IP40 | IP40 |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Voltage Rating - Appliance Inlet | 250 VAC | 250 VAC |
GSF1.2102 Series
PWR ENT MOD RCPT IEC320-C14
| Part | Connector Type | Accomodates a Fuse | Approval Agency | Current Rating - Appliance Inlet | Voltage Rating - Appliance Inlet | Filter Type | Ingress Protection | Connector Style | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. GSF1.2102.01 | Receptacle, Male Blades - Module | CCC, CSA, ENEC, UL | 10 A | 250 VAC | Unfiltered - Commercial | IP40 | IEC 320-C14 | UL94 V-0 | |
SCHURTER Inc. GSF1.2102.31 | Receptacle, Male Blades - Module | CCC, CSA, ENEC, UL | 10 A | 250 VAC | Unfiltered - Commercial | IP40 | IEC 320-C14 | UL94 V-0 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 4.53 | |
Description
General part information
GSF1.2102 Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14
Documents
Technical documentation and resources
