AGA-20
ActiveEaton - Electronics Division

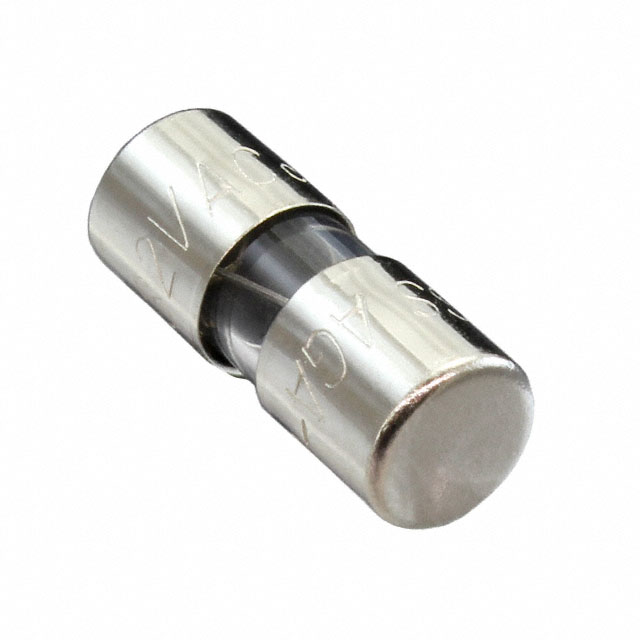

FUSE GLASS 20A 32VAC 1AG
AGA-20
ActiveEaton - Electronics Division
FUSE GLASS 20A 32VAC 1AG
Description
General part information
AGA-20
20 A 32 V AC DC Fuse Cartridge, Glass Requires Holder 1AG, 1/4" x 5/8"
Technical Specifications
Parameters and characteristics for this part
| Specification | AGA-20 |
|---|---|
| Approval Agency | UR |
| Breaking Capacity | 1 kA |
| Current Rating | 20 A |
| DC Cold Resistance | 0.003 Ohms |
| Fuse Type | Cartridge, Glass |
| Mounting Type | Requires Holder |
| Package Diameter | 0.25 in |
| Package Length | 0.25 in, 0.625 in |
| Package Name | 1AG |
| Package Width | 0.625 in |
| Response Time | Fast Blow |
| Size / Dimension Diameter | 0.25 in |
| Size / Dimension Length | 0.625 in |
| Voltage Rating - AC | 32 VAC |
