RC1140-RC232-DK

Active

Radiocrafts AS

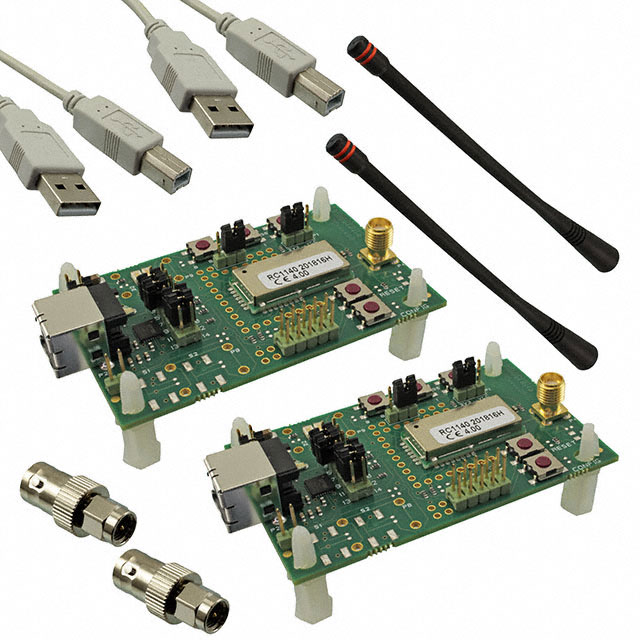

RC232 DEVELOPMENT KIT

Search across all available documentation for this part.

Active

Radiocrafts AS

RC232 DEVELOPMENT KIT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RC1140-RC232-DK	RC1140 Series

Antenna Type	-	Antenna Not Included, Castellation
Applications	-	General Purpose
Contents	Board(s)	Board(s)
Current - Receiving	-	24 mA
Current - Transmitting	-	35 mA
Data Rate	-	100 Kbps
Frequency	433 MHz	433 MHz
Frequency	-	434 MHz
Frequency	-	433 MHz
Function	-	Transceiver, ZigBee™
Interface	-	USB
Modulation	-	GFSK
Modulation or Protocol	-	802.15.4 Zigbee™
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	-	Module
Power - Output	-	10 dBm
Protocol	-	RC232
RF Family/Standard	-	General ISM < 1GHz
Sensitivity	-	-110 dBm
Serial Interfaces	-	UART
Type	Transceiver	Transceiver
Utilized IC / Part	RC1140-RC232	RC1140-RC232, CC1110
Voltage - Supply	-	3.6 V
Voltage - Supply	-	2 V

RC232 DEVELOPMENT KIT

Part	Frequency	Utilized IC / Part	Type	Contents	Interface	Frequency [Max]	Frequency [Min]	Modulation or Protocol	Applications	Function	Current - Transmitting	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Mounting Type	Antenna Type	Modulation	Operating Temperature [Max]	Operating Temperature [Min]	Protocol	RF Family/Standard	Current - Receiving	Power - Output	Sensitivity	Serial Interfaces	Data Rate
Radiocrafts AS RC1140-RC232-DK	433 MHz	RC1140-RC232	Transceiver	Board(s)
Radiocrafts AS RC1140-RC232-USB					USB	434 MHz	433 MHz	802.15.4 Zigbee™	General Purpose	Transceiver, ZigBee™
Radiocrafts AS RC1140-MBUS3-USB	433 MHz				USB			802.15.4 Zigbee™	General Purpose	Transceiver, ZigBee™
Radiocrafts AS RC1140-RC232		CC1110				434 MHz	433 MHz				35 mA	3.6 V	2 V	Module	Surface Mount	Antenna Not Included, Castellation	GFSK	85 °C	-40 °C	RC232	General ISM < 1GHz	24 mA	10 dBm	-110 dBm	UART	100 Kbps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 252.50

General part information

RC1140-RC232 RC232™ Transceiver 433MHz Evaluation Board
