M3BYK-3418R

Active

IDC CABLE - MSR34K/MC34M/MPD34K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Ribbon Cable Assembly Length Guide +1

M3BYK-3418R

Active

IDC CABLE - MSR34K/MC34M/MPD34K

Deep-Dive with AI

DocumentsDatasheet Ribbon Cable Assembly Length Guide +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 34.64
		10	$ 26.76
		25	$ 24.26
		50	$ 22.57
		100	$ 21.03
		250	$ 19.23
		500	$ 18.02

Description

General part information

M3BYK Series

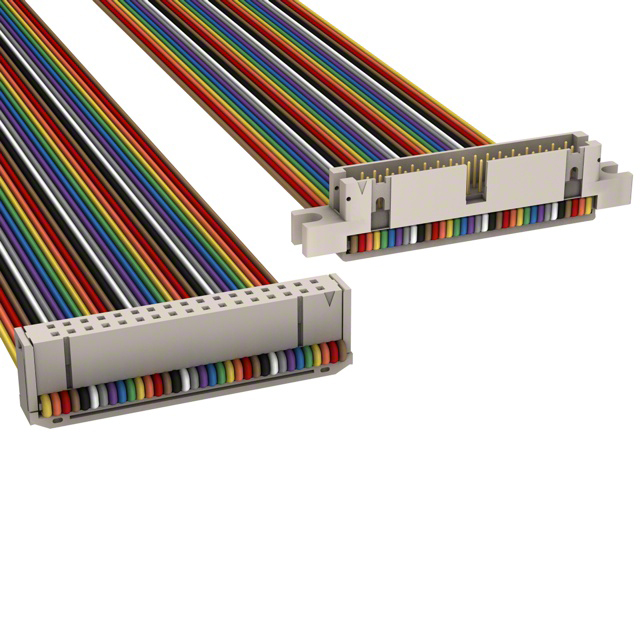

34 Position Cable Assembly Rectangular Socket to Plug 1.50' (457.20mm)

Documents

Technical documentation and resources

Datasheet

Ribbon Cable Assembly Length Guide

Datasheet

4600 Series Drawing

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M3BYK-3418R	M3BYK Series

Cable Termination	IDC	IDC
Color	Ribbon, Multiple	Multiple, Twisted Pair (Flat), Ribbon, Multiple
Connector Type	Socket to Plug	Socket to Plug
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Flange, Strain Relief (Plug), Polarizing Key, Strain Relief (Socket)	Flange, Strain Relief (Plug), Polarizing Key, Strain Relief (Socket)
Length	-	1.52 - 508 m
Length	-	1.67 - 5 '
Length	-	6 "
Length	-	0.5 '
Length [x]	457.2 mm	1.02 - 914.4 mm
Length [x]	1.5 ft	1.5 - 3.34 ft
Number of Positions	34	10 - 60
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

M3BYK Series

IDC CABLE - MSR40K/MC40F/MPD40K

Part	Color	Pitch - Connector	Pitch - Connector	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Shielding	Number of Positions	Pitch - Cable	Pitch - Cable	Cable Termination	Length	Length	Connector Type	Features	Length [x]	Length [x]	Length	Length	Number of Positions
3M M3BYK-4060K	Multiple, Twisted Pair (Flat)	0.1 in	2.54 mm	2	0.76 Ám	30 Áin	Gold	Unshielded	40	0.05 "	1.27 mm	IDC	1.52 m	5 '	Socket to Plug	Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)
3M M3BYK-6060K	Multiple, Twisted Pair (Flat)	0.1 in	2.54 mm	2	0.76 Ám	30 Áin	Gold	Unshielded	60	0.05 "	1.27 mm	IDC	1.52 m	5 '	Socket to Plug	Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)
3M M3BYK-1018R	Multiple, Ribbon	0.1 in	2.54 mm	2	0.76 Ám	30 Áin	Gold	Unshielded	10	0.05 "	1.27 mm	IDC			Socket to Plug	Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)	457.2 mm	1.5 ft
3M M3BYK-1606R	Multiple, Ribbon	0.1 in	2.54 mm	2	0.76 Ám	30 Áin	Gold	Unshielded		0.05 "	1.27 mm	IDC	152.4 mm		Socket to Plug	Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)			6 "	0.5 '	16
3M M3BYK-4020K	Multiple, Twisted Pair (Flat)	0.1 in	2.54 mm	2	0.76 Ám	30 Áin	Gold	Unshielded	40	0.05 "	1.27 mm	IDC	508 mm	1.67 ft	Socket to Plug	Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)
3M M3BYK-2006J		0.1 in	2.54 mm	2	0.76 Ám	30 Áin	Gold	Unshielded	20	0.05 "	1.27 mm	IDC	152.4 mm		Socket to Plug	Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)			6 "	0.5 '
3M M3BYK-2636J		0.1 in	2.54 mm	2	0.76 Ám	30 Áin	Gold	Unshielded	26	0.05 "	1.27 mm	IDC			Socket to Plug	Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)	914.4 mm	3 ft
3M M3BYK-3436J		0.1 in	2.54 mm	2	0.76 Ám	30 Áin	Gold	Unshielded	34	0.05 "	1.27 mm	IDC			Socket to Plug	Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)	914.4 mm	3 ft
3M M3BYK-1620K	Multiple, Twisted Pair (Flat)	0.1 in	2.54 mm	2	0.76 Ám	30 Áin	Gold	Unshielded		0.05 "	1.27 mm	IDC	508 mm	1.67 ft	Socket to Plug	Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)					16
3M M3BYK-2018J		0.1 in	2.54 mm	2	0.76 Ám	30 Áin	Gold	Unshielded	20	0.05 "	1.27 mm	IDC			Socket to Plug	Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)	457.2 mm	1.5 ft
