General part information

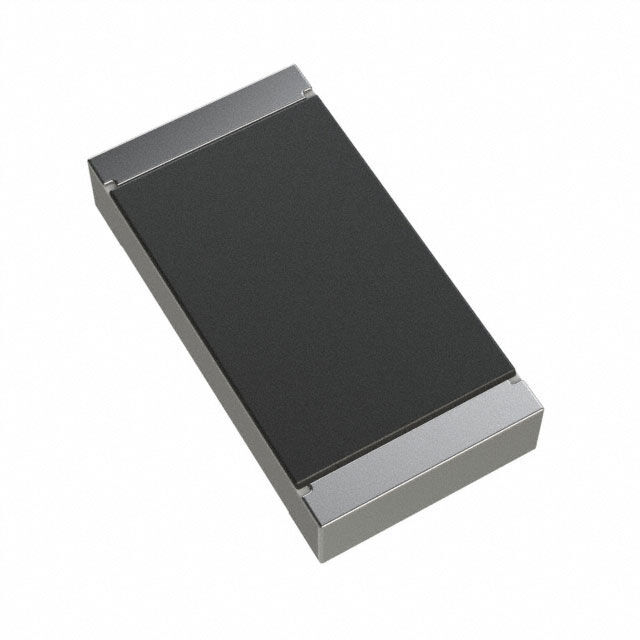

PCS0805FR0010ET
1 mOhms ±1% 0.5W, 1/2W Chip Resistor 0805 (2012 Metric) Current Sense Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | PCS0805FR0010ET |
|---|---|
| Composition | Metal Film |
| Features | Current Sense |
| Height - Seated (Max) | 0.03 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 170 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0805 (2012 Metric) |
| Package Name | 0805 |
| Power (Watts) | 500 mW |
| Power (Watts) Options | 1/2W |
| Resistance | 1 mOhms |
| Size / Dimension Length | 0.081 in |
| Size / Dimension Width | 0.051 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
