Description
General part information

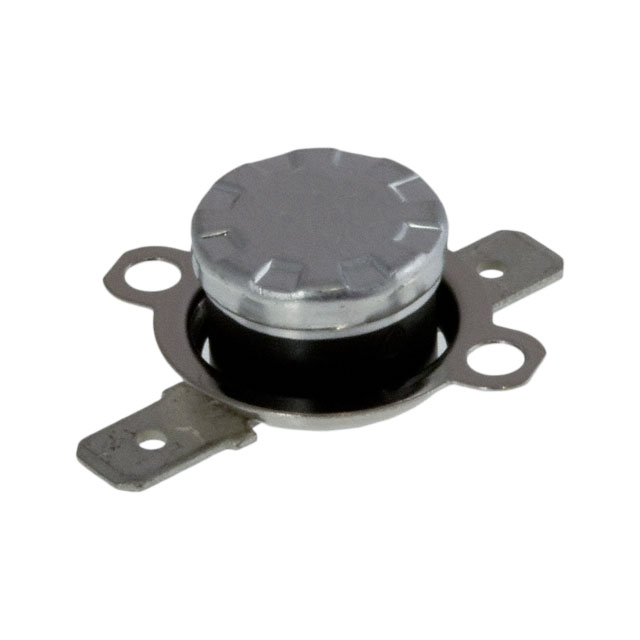

CS702025Y
THERMOSTAT 20DEG C SPST-NC CYL
Technical Specifications
Parameters and characteristics for this part
| Specification | CS702025Y |
|---|---|
| Circuit | SPST-NC |
| Current Rating - AC | 10 A, 15 A |
| Current Rating - DC | 10 A, 15 A |
| Mounting Type | Chassis Mount |
| Package / Case | Cylinder with Mounting Flange |
| Switching Cycles | 100 Kcycles |
| Switching Temperature | 20 °C |
| Termination Style | Quick Connect |
| Tolerance | 9 °F |
