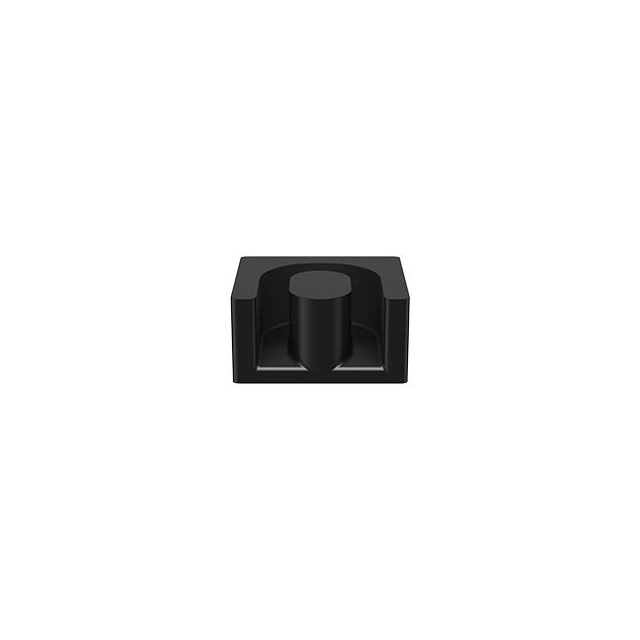

Specification	B65857A0250J038

Core Factor (ΣI/A) mm⁻¹	0.91 mm⁻¹
Core Type	EPX
Effective Area (Ae)	17.2 mm²
Effective Length (le)	15.7 mm
Effective Magnetic Volume (Ve)	270 mm³
Effective Permeability (µe)	182
Finish	Uncoated
Gap	Gapped
Height	0.148 in
Inductance Factor (Al)	250 nH
Initial Permeability (µi)	2300
Length	0.37 in
Material	T38
Minimum Core Cross Section (Amin) (mm²)	13.9 mm²
Package Length	7 mm
Package Name	EPX
Package Width	9 mm
Tolerance	5 %
Width	0.354 in
