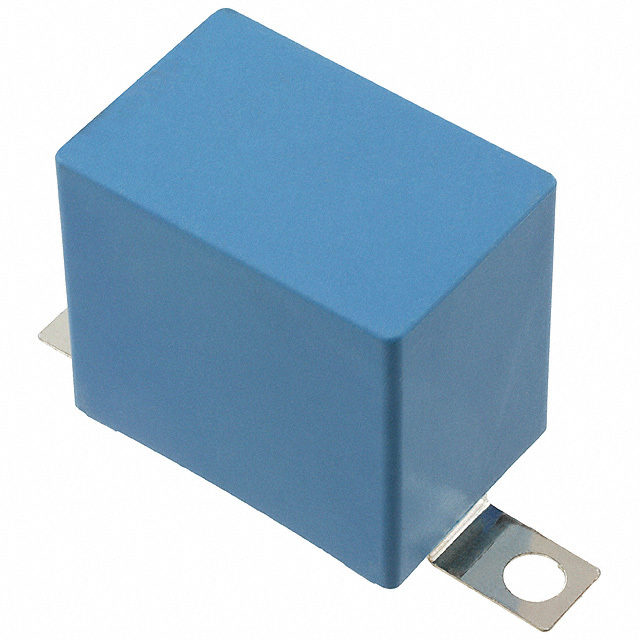

Specification	B32686S2223K564

Applications	Snubber
Capacitance	0.022 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	70 mOhm
Height - Seated (Max)	0.886 in
Lead Spacing	1.122 in
Mounting Type	Chassis Mount
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-55 °C
Package / Case	Rectangular Box
Size / Dimension Length	1.654 in
Size / Dimension Width	0.472 in
Termination	Screw Terminals
Tolerance	10 %
Voltage Rating - AC	500 V
Voltage Rating - DC	2 kVDC
