FMHR0179-100CM
ActiveFairview Microwave
CBL ASSY TYPE NPLUG-TYPE NPLUG 3
FMHR0179-100CM
ActiveFairview Microwave
CBL ASSY TYPE NPLUG-TYPE NPLUG 3
Description
General part information
FMHR0179-100CM

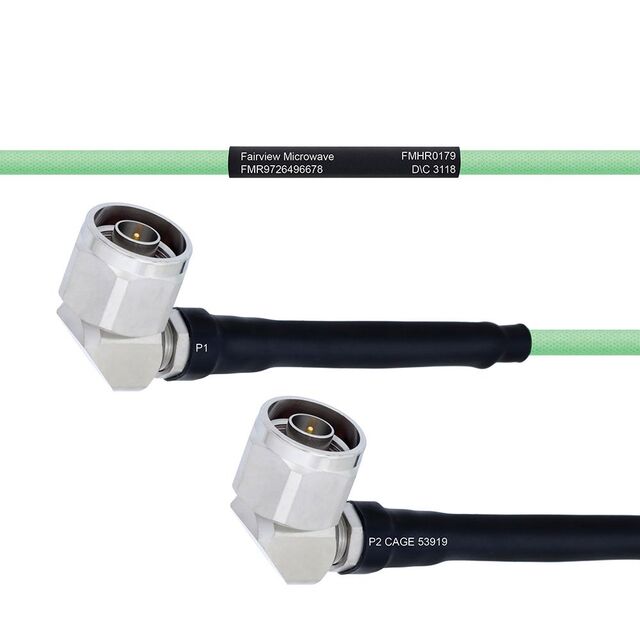

Cable Assembly Coaxial N-Type to N-Type 39.4" (1.0m) 3.3'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMHR0179-100CM |
|---|---|
| 1st Connector | N-Type Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | Right Angle, N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 18 GHz |
| Length | 39.4 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
