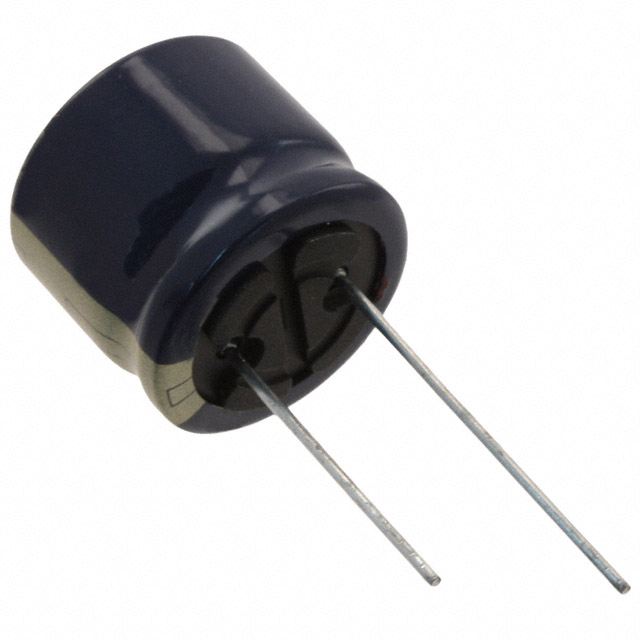

Specification	EEU-FC2A561

Applications	Automotive
Capacitance	560 µF
Height - Seated (Max)	1.476 in
Impedance	41 mOhms
Lead Spacing	0.295 in
Lifetime	5000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Package / Case	Can, Radial
Polarization	Polar
Ratings	AEC-Q200
Ripple Current	1.328 A, 1.77 A
Size / Dimension Diameter	0.709 in
Tolerance	20 %
Voltage - Rated	100 VAC/DC

EEU-FC Series

...

Part	Applications	Height - Seated (Max)	Voltage - Rated	Impedance	Ripple Current	Lead Spacing	Tolerance	Mounting Type	Capacitance	Size / Dimension Diameter	Package / Case	Ratings	Lifetime	Operating Temperature (Min)	Operating Temperature (Max)	Polarization
Panasonic Electronic Components EEU-FC1J220	Automotive	0.441 in	63 V	1 Ohms	156 mA 240 mA	0.098 in	20 %	Through Hole	22 µF	0.248 in	Can Radial	AEC-Q200	1000 Hrs	-55 °C	105 °C	Polar
Panasonic Electronic Components EEU-FC1J561	Automotive	0.984 in	63 V	50 mOhm	1.62 A 2.29 A	0.295 in	20 %	Through Hole	560 µF	0.63 in	Can Radial	AEC-Q200	5000 Hrs	-55 °C	105 °C	Polar
Panasonic Electronic Components EEU-FC1V181B	Automotive	0.531 in	35 V	90 mOhms	490.8 mA 755 mA	0.197 in	20 %	Through Hole	180 µF	0.394 in	Can Radial	AEC-Q200	3000 Hrs	-55 °C	105 °C	Polar
Panasonic Electronic Components EEU-FC1C470B	Automotive	0.571 in	16 V	800 mOhm	113.8 mA 175 mA	0.197 in	20 %	Through Hole	47 µF	0.197 in	Can Radial	AEC-Q200	1000 Hrs	-55 °C	105 °C	Polar
Panasonic Electronic Components EEU-FC1C122	Automotive	0.984 in	16 V	45 mOhm	1.152 A 1.44 A	0.197 in	20 %	Through Hole	1200 µF	0.394 in	Can Radial	AEC-Q200	3000 Hrs	-55 °C	105 °C	Polar
Panasonic Electronic Components EEU-FC2A220	Automotive	0.453 in	100 VAC/DC	680 mOhms	169 mA 260 mA	0.138 in	20 %	Through Hole	22 µF	0.315 in	Can Radial	AEC-Q200	2000 Hrs	-55 °C	105 °C	Polar
Panasonic Electronic Components EEU-FC1V391S	Automotive	0.591 in	35 V	65 mOhms	1.205 A 903.8 mA	0.197 in	20 %	Through Hole	390 µF	0.492 in	Can Radial	AEC-Q200	5000 Hrs	-55 °C	105 °C	Polar
Panasonic Electronic Components EEU-FC1V820B	Automotive	0.728 in	35 V	250 mOhms	260 mA 400 mA	0.197 in	20 %	Through Hole	82 µF	0.248 in	Can Radial	AEC-Q200	1000 Hrs	-55 °C	105 °C	Polar
Panasonic Electronic Components EEU-FC1C681	Automotive	0.63 in	16 V	68 mOhm	1.05 A 787.5 mA	0.197 in	20 %	Through Hole	680 µF	0.394 in	Can Radial	AEC-Q200	3000 Hrs	-55 °C	105 °C	Polar
Panasonic Electronic Components EEU-FC1H4R7	Automotive	0.472 in	50 V	1.3 Ohms	61.75 mA 95 mA	0.079 in	20 %	Through Hole	4.7 µF	0.197 in	Can Radial	AEC-Q200	1000 Hrs	-55 °C	105 °C	Polar
