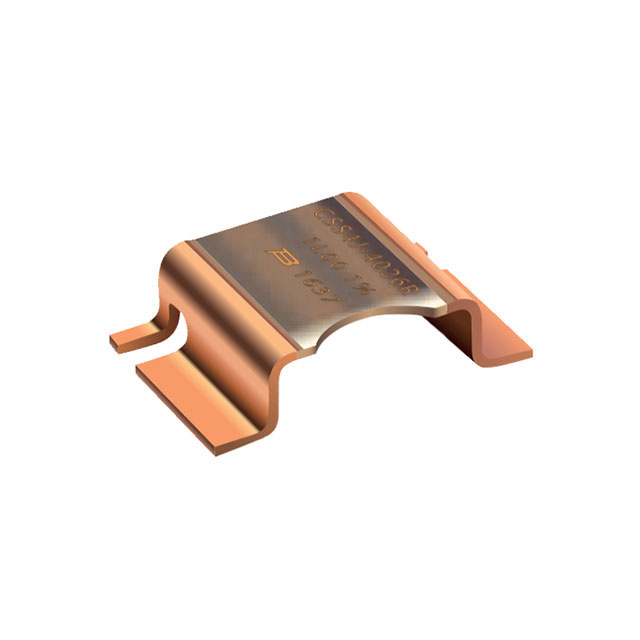

CSS4J-4026K-3L00F
ActiveBourns Inc.
CURRENT SENSE SHUNT
CSS4J-4026K-3L00F
ActiveBourns Inc.
CURRENT SENSE SHUNT
Description
General part information
CSS4J-4026K-3L00F
3 mOhms ±1% 3W Chip Resistor Nonstandard Automotive AEC-Q200, Current Sense Metal Element
Technical Specifications
Parameters and characteristics for this part
| Specification | CSS4J-4026K-3L00F |
|---|---|
| Composition | Metal Element |
| Features | Current Sense, Automotive AEC-Q200 |
| Height - Seated (Max) | 0.048 in |
| Number of Terminations | 4 |
| Operating Temperature (Max) | 170 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Package Name | 4026 |
| Power (Watts) | 3 W |
| Ratings | AEC-Q200 |
| Resistance | 3 mOhms |
| Size / Dimension Length | 0.397 in |
| Size / Dimension Width | 0.26 in |
| Temperature Coefficient | 75 ppm/¯C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
