MSW07E24-61S-SR

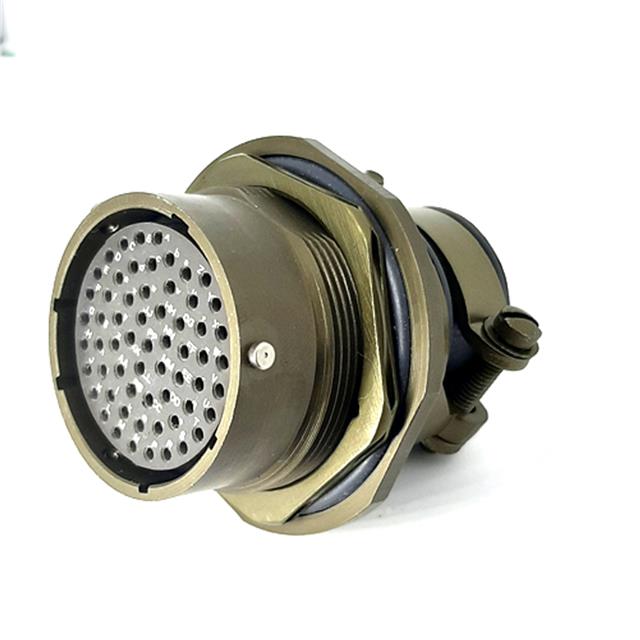

61 Position Circular Connector Plug, Female Sockets Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | MSW07E24-61S-SR |
|---|---|
| Applications | Military |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Cadmium |
| Current Rating | 7.5 A |
| Fastening Type | Bayonet Lock |
| Features | Strain Relief |
| Ingress Protection | Environment Resistant |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Number of Positions | 61 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Shell Finish | Cadmium |
| Shell Material | Aluminum |
| Shell Size - Insert (Maximum) | 61 |
| Shell Size - Insert (Minimum) | 24 |
| Termination | Solder |
| Voltage Rating | 800 V |
