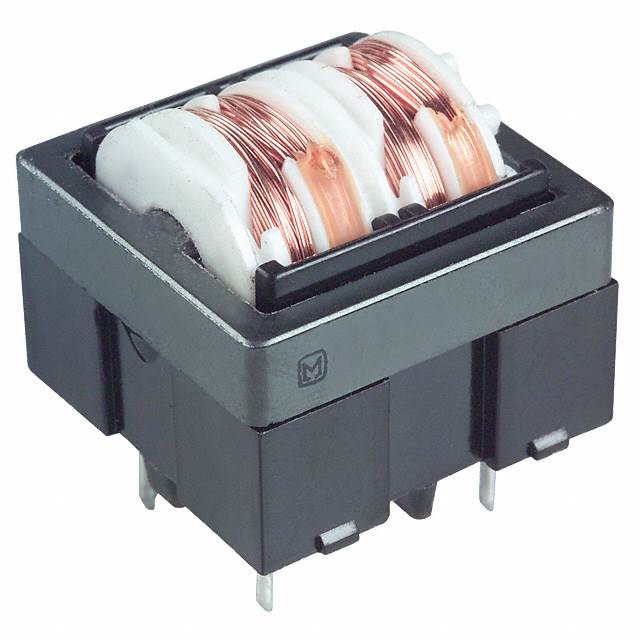

Specification	ELF-18D217

Current Rating (Max)	1.6 A
DC Resistance (DCR) (Max)	119 mOhm
DC Resistance (DCR) (Typ)	119 mOhm
Height (Max)	0.787 in
Inductance	1.5 mH
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-20 °C
Package / Case	4 PC Pin, Vertical
Package Leads	4 Leads
Package Name	Vertical
Size / Dimension Length	0.787 in
Size / Dimension Width	0.827 in
Voltage Rating - AC	250 V

ELF-18 Series

Part	Height (Max)	Mounting Type	Package Leads	Package / Case	Package Name	Current Rating (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Size / Dimension Length	Size / Dimension Width	Voltage Rating - AC	Inductance	DC Resistance (DCR) (Max)	DC Resistance (DCR) (Typ)	Number of Lines
Panasonic Electronic Components ELF-18D420F	0.807 in	Through Hole	4 Leads	4 PC Pin Vertical	Vertical	3 A	-20 °C	105 °C	0.945 in	0.984 in	250 V	1.2 mH	43 mOhm	43 mOhm	2
Panasonic Electronic Components ELF-18D850C	1.575 in	Through Hole	4 Leads	4 PC Pin Vertical	Vertical	3 A			1.417 in	1.004 in			97 mOhm	97 mOhm	2
Panasonic Electronic Components ELF-18D417	0.807 in	Through Hole	4 Leads	4 PC Pin Vertical	Vertical	700 mA	-20 °C	105 °C	0.945 in	0.984 in	250 V	18 mH	700 mOhm	700 mOhm	2
Panasonic Electronic Components ELF-18N004A	1.083 in	Through Hole	4 Leads	4 PC Pin Vertical	Vertical	400 mA			0.709 in	1.083 in			2.72 Ohm	2.72 Ohm	2
Panasonic Electronic Components ELF-18D290S	0.886 in	Through Hole	4 Leads	4 PC Pin Vertical	Vertical	1.1 A			0.827 in	0.63 in			277 mOhm	277 mOhm	2
Panasonic Electronic Components ELF-18D437F	0.807 in	Through Hole	4 Leads	4 PC Pin Vertical	Vertical	400 mA	-20 °C	105 °C	0.945 in	0.984 in	250 V	68 mH	2.319 Ohm	2.319 Ohm	2
Panasonic Electronic Components ELF-18N016A	1.083 in	Through Hole	4 Leads	4 PC Pin Vertical	Vertical	1.6 A			0.709 in	1.083 in			185 mOhm	185 mOhm	2
Panasonic Electronic Components ELF-18D428	0.807 in	Through Hole	4 Leads	4 PC Pin Vertical	Vertical	500 mA	-20 °C	105 °C	0.945 in	0.984 in	250 V	33 mH	1.184 Ohm	1.184 Ohm	2
Panasonic Electronic Components ELF-18N020A	1.083 in	Through Hole	4 Leads	4 PC Pin Vertical	Vertical	2 A			0.709 in	1.083 in			130 mOhm	130 mOhm	2
Panasonic Electronic Components ELF-18D656J	1.362 in	Through Hole	4 Leads	4 PC Pin Vertical	Vertical	1.6 A			0.827 in	1.142 in			225 mOhm	225 mOhm	2
