FMCN1027TR1
ObsoleteFairview Microwave
CONN JACK SOLDER MMBX
FMCN1027TR1
ObsoleteFairview Microwave
CONN JACK SOLDER MMBX
Description
General part information
FMCN1027TR1

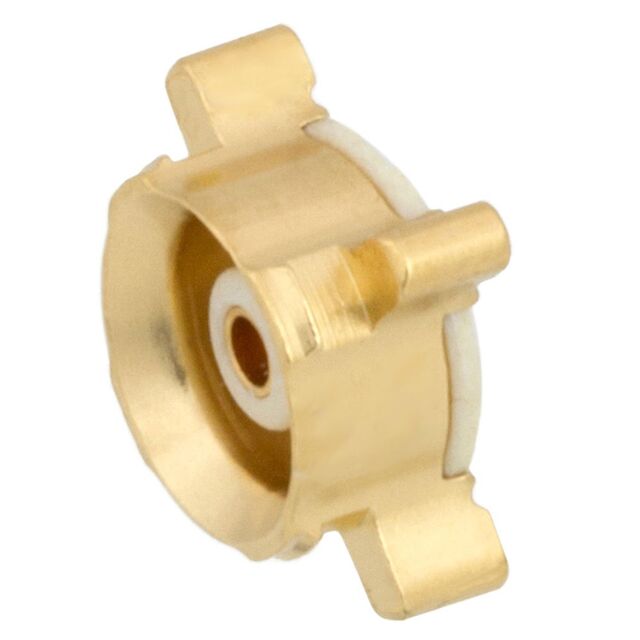

MMBX Connector Jack, Female Socket 50 Ohms Surface Mount Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCN1027TR1 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | MMBX |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max | 12.4 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohm |
| Insertion Loss | 0.42 dB |
| Mating Cycles | 100 cycles |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Shield Termination | Solder |
| Voltage Rating | 330 V |
