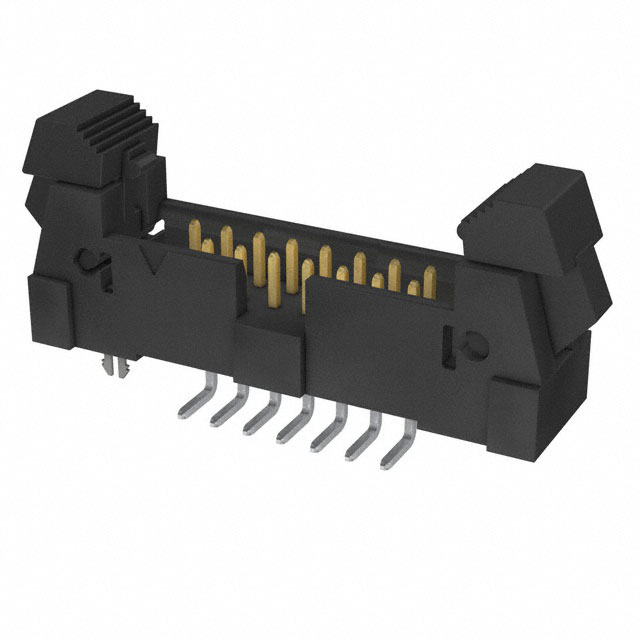

Specification	EHT-108-01-F-D-SM-LC-01-K-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Length - Mating	0.12 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Fastening Type	Eject Hooks, Latch Lock
Features	Board Lock, Keying Slot, Pick and Place
Insulation Color	Black
Insulation Height	0.37 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	16
Number of Positions Loaded	15
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.079 in
Row Spacing - Mating	0.079 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder

EHT-108 Series

Part	Current Rating	Row Spacing - Mating	Number of Positions Loaded	Insulation Color	Fastening Type	Contact Finish Thickness - Mating	Mounting Type	Contact Type	Contact Length - Mating	Contact Material	Contact Finish - Post	Number of Rows	Material Flammability Rating	Termination	Contact Finish - Mating	Features	Pitch - Mating	Insulation Material	Operating Temperature (Max)	Operating Temperature (Min)	Style	Contact Shape	Insulation Height	Connector Type	Shrouding	Number of Positions	Contact Length - Post	Number of Positions Loaded
Samtec Inc. EHT-110-01-F-D-SM-K-TR	3 A	0.079 in	All	Black	Eject Hooks Latch Lock	3 µin	Surface Mount	Male Pin	0.12 in	Phosphor Bronze	Tin	2	UL94 V-0	Solder	Gold	Keying Slot Pick and Place	0.079 in	Liquid Crystal Polymer (LCP)	125 °C	-55 °C	Board Cable/Wire	Square	0.37 in	Header	Shrouded - 4 Wall	20
Samtec Inc. EHT-110-01-S-D-SM-LC	3 A	0.079 in	All	Black	Eject Hooks Latch Lock	30 µin	Surface Mount	Male Pin	0.12 in	Phosphor Bronze	Tin	2	UL94 V-0	Solder	Gold	Board Lock Keying Slot	0.079 in	Liquid Crystal Polymer (LCP)	125 °C	-55 °C	Board Cable/Wire	Square	0.37 in	Header	Shrouded - 4 Wall	20
Samtec Inc. EHT-110-01-T-D-SR	3 A	0.079 in	All	Black	Eject Hooks Latch Lock		Through Hole	Male Pin	0.12 in	Phosphor Bronze	Tin	2	UL94 V-0	Solder	Tin	Keying Slot Strain Relief	0.079 in	Liquid Crystal Polymer (LCP)	125 °C	-55 °C	Board Cable/Wire	Square	0.37 in	Header	Shrouded - 4 Wall	20	0.114 in
Samtec Inc. EHT-110-01-S-D-SM-09	3 A	0.079 in		Black	Eject Hooks Latch Lock	30 µin	Surface Mount	Male Pin	0.12 in	Phosphor Bronze	Tin	2	UL94 V-0	Solder	Gold	Keying Slot	0.079 in	Liquid Crystal Polymer (LCP)	125 °C	-55 °C	Board Cable/Wire	Square	0.37 in	Header	Shrouded - 4 Wall	20		19
Samtec Inc. EHT-110-01-SM-D-RA	3 A	0.079 in	All	Black	Eject Hooks Latch Lock	30 µin	Right Angle Through Hole	Male Pin	0.12 in	Phosphor Bronze	Tin	2	UL94 V-0	Solder	Gold	Keying Slot	0.079 in	Liquid Crystal Polymer (LCP)	125 °C	-55 °C	Board Cable/Wire	Square	0.3 in	Header	Shrouded - 4 Wall	20	0.12 in
Samtec Inc. EHT-110-01-T-D-SM	3 A	0.079 in	All	Black	Eject Hooks Latch Lock		Surface Mount	Male Pin	0.12 in	Phosphor Bronze	Tin	2	UL94 V-0	Solder	Tin	Keying Slot	0.079 in	Liquid Crystal Polymer (LCP)	125 °C	-55 °C	Board Cable/Wire	Square	0.37 in	Header	Shrouded - 4 Wall	20
Samtec Inc. EHT-110-01-S-D-SM-LC-K	3 A	0.079 in	All	Black	Eject Hooks Latch Lock	30 µin	Surface Mount	Male Pin	0.12 in	Phosphor Bronze	Tin	2	UL94 V-0	Solder	Gold	Board Lock Keying Slot Pick and Place	0.079 in	Liquid Crystal Polymer (LCP)	125 °C	-55 °C	Board Cable/Wire	Square	0.37 in	Header	Shrouded - 4 Wall	20
Samtec Inc. EHT-110-01-S-D-SM-LC-P	3 A	0.079 in	All	Black	Eject Hooks Latch Lock	30 µin	Surface Mount	Male Pin	0.12 in	Phosphor Bronze	Tin	2	UL94 V-0	Solder	Gold	Board Lock Keying Slot Pick and Place	0.079 in	Liquid Crystal Polymer (LCP)	125 °C	-55 °C	Board Cable/Wire	Square	0.37 in	Header	Shrouded - 4 Wall	20
Samtec Inc. EHT-110-01-SM-D-SM-TR	3 A	0.079 in	All	Black	Eject Hooks Latch Lock	30 µin	Surface Mount	Male Pin	0.12 in	Phosphor Bronze	Tin	2	UL94 V-0	Solder	Gold	Keying Slot	0.079 in	Liquid Crystal Polymer (LCP)	125 °C	-55 °C	Board Cable/Wire	Square	0.37 in	Header	Shrouded - 4 Wall	20
Samtec Inc. EHT-110-01-F-D-SM-LC-K-TR	3 A	0.079 in	All	Black	Eject Hooks Latch Lock	3 µin	Surface Mount	Male Pin	0.12 in	Phosphor Bronze	Tin	2	UL94 V-0	Solder	Gold	Board Lock Keying Slot Pick and Place	0.079 in	Liquid Crystal Polymer (LCP)	125 °C	-55 °C	Board Cable/Wire	Square	0.37 in	Header	Shrouded - 4 Wall	20
