DMS-40LCD-0/1-5-C
ActiveDIGITAL PANEL METER, LCD, 4-1/2 DIGITS, DC VOLTAGE, -200MV TO +200MV, -2V TO +2V
Deep-Dive with AI
Search across all available documentation for this part.
DMS-40LCD-0/1-5-C
ActiveDIGITAL PANEL METER, LCD, 4-1/2 DIGITS, DC VOLTAGE, -200MV TO +200MV, -2V TO +2V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DMS-40LCD-0/1-5-C | DMS-40LCD Series |
|---|---|---|
| Display Characters - Height | - | 0.401 " |
| Display Characters - Height | - | 10.2 mm |
| Display Type | - | LCD - Black Characters, Backlight, LCD - Black Characters |
| Features | - | Bezel Sold Separately |
| Measuring Range | - | 2 V |
| Measuring Range | - | -2 V |
| Measuring Type | - | Voltage |
| null | - | |
| Number of Characters Per Row | - | 4.5 |
| Output Type | - | Reference |
| Panel Cutout Dimensions | - | 22.3 mm |
| Panel Cutout Dimensions | - | 53.8 mm |
| Termination Style | - | PC Pin |
| Type | - | Voltmeter |
| Voltage - Supply | - | 5 - 9 V |
| Voltage - Supply | - | Battery |
| Weight | - | 20.87 g |
| Weight | - | 0.046 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
DMS-40LCD Series
VOLTMETER 2VDC LCD PANEL MOUNT
| Part | Measuring Range [Max] | Measuring Range [Min] | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Type | Features | Display Characters - Height [z] | Display Characters - Height [z] | Voltage - Supply | Voltage - Supply | Termination Style | Weight | Weight | Measuring Type | Output Type | Display Type | Number of Characters Per Row |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. DMS-40LCD-1/2-9B-C | 2 V | -2 V | 22.3 mm | 53.8 mm | Voltmeter | Bezel Sold Separately | 0.401 " | 10.2 mm | 9 V | Battery | PC Pin | 20.87 g | 0.046 lb | Voltage | Reference | LCD - Black Characters, Backlight | 4.5 |
Murata Power Solutions Inc. DMS-40LCD-2/3-5-C | 22.3 mm | 53.8 mm | Voltmeter | Bezel Sold Separately | 0.401 " | 10.2 mm | 5 V | PC Pin | 20.87 g | 0.046 lb | Voltage | Reference | LCD - Black Characters | 4.5 | |||
Murata Power Solutions Inc. DMS-40LCD-0/1-5-C | 2 V | -2 V | 22.3 mm | 53.8 mm | Voltmeter | 0.401 " | 10.2 mm | 5 V | PC Pin | 20.87 g | 0.046 lb | Voltage | LCD - Black Characters | 4.5 | |||
Murata Power Solutions Inc. DMS-40LCD-0/1-5-C |
Description
General part information
DMS-40LCD Series

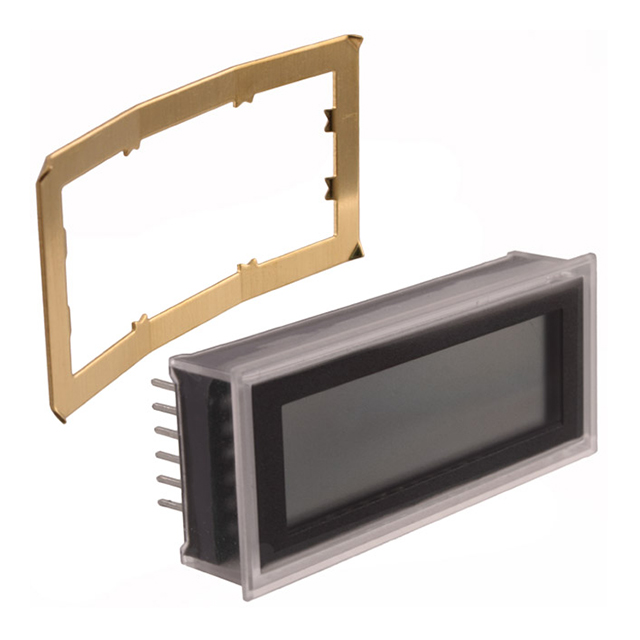

The DMS-40LCD-0/1-5-C is a 4.5-digit LCD Miniature Digital Panel Meter with ±200mV/±2V input and single 5V supply. This miniature digital voltmeter combines an advanced, auto zeroing A/D converter, a precision reference circuit and a large (10.2mm high), easy-to-read LCD display in a single, fully encapsulated, 12-pin DIP package. This model incorporates a built-in bezel and is easily mounted in either panels or PC boards.
