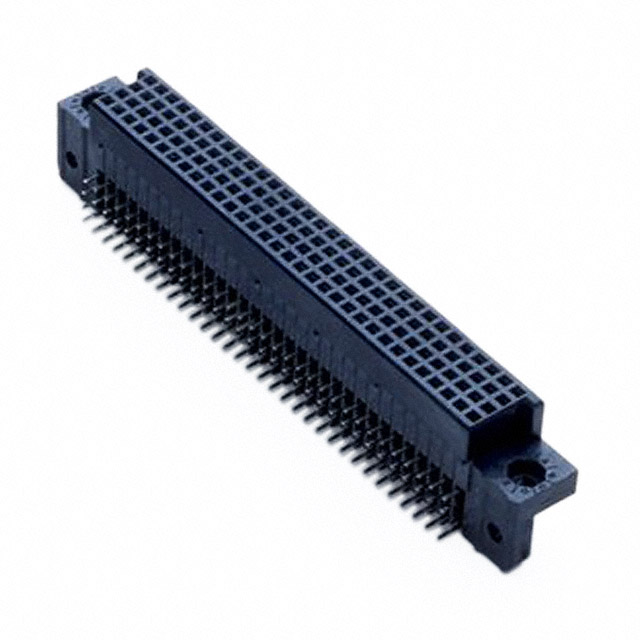

HDC-S150-31S2-KR

Active

CONN RCPT HD 150POS PCB

Search across all available documentation for this part.

Active

CONN RCPT HD 150POS PCB

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HDC-S150-31S2-KR	HDC-S Series

Color	Black	Black
Connector Style	High Density (HDC, HDI, HPC)	High Density (HDC, HDI, HPC)
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Current Rating (Amps)	3 A	3 A
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	150	140 - 150
Number of Positions Loaded	All	All
Number of Rows	3	3
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Termination	Solder	Solder

CONN RCPT HD 150POS PCB

Part	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Termination	Mounting Type	Color	Number of Positions	Pitch [x]	Pitch [x]	Current Rating (Amps)	Number of Positions Loaded	Contact Finish	Material Flammability Rating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows
3M HDC-S150-31S2-KR	High Density (HDC, HDI, HPC)	0.76 Ám	30 Áin	Solder	Through Hole, Right Angle	Black	150	2.54 mm	0.1 in	3 A	All	Gold	UL94 V-0	Receptacle, Female Sockets	-55 °C	125 °C	3
3M HDC-S140-41S1-TG30	High Density (HDC, HDI, HPC)	0.76 Ám	30 Áin	Solder	Through Hole, Right Angle	Black	140	2.54 mm	0.1 in	3 A	All	Gold	UL94 V-0	Receptacle, Female Sockets	-55 °C	125 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

150 Connector Receptacle, Female Sockets Through Hole, Right Angle Black High Density (HDC, HDI, HPC)
