Description
General part information

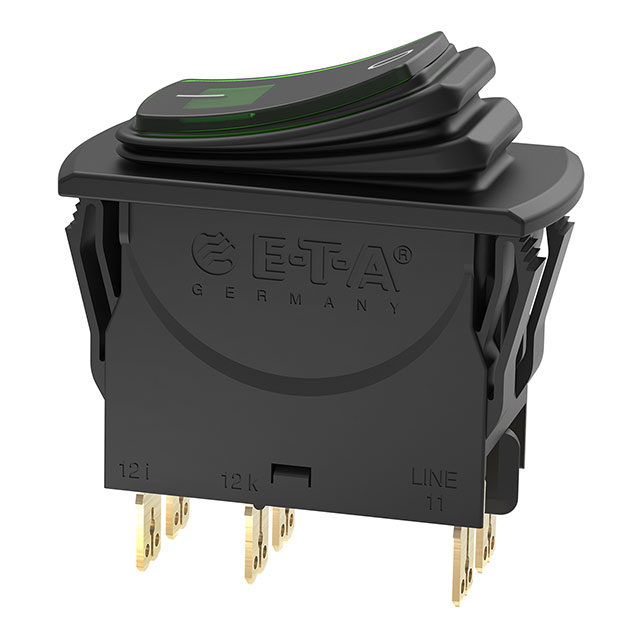

3120-N324-P7T1-W19DG3-20A
Circuit Breaker Thermal 20A 415 V AC 50 V DC Rocker Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 3120-N324-P7T1-W19DG3-20A |
|---|---|
| Actuator Type | Rocker |
| Approval Agency | IEC 60934, CSA C22.2 No 235, UL1077, GB 17701 |
| Breaker Type | Thermal |
| Current Rating | 20 A |
| Illumination | Green |
| Illumination Voltage (Nominal) | 115 V |
| Mounting Type | Panel Mount |
| Number of Poles | 2 |
| Voltage Rating - AC | 415 VAC |
| Voltage Rating - DC | 50 V |
