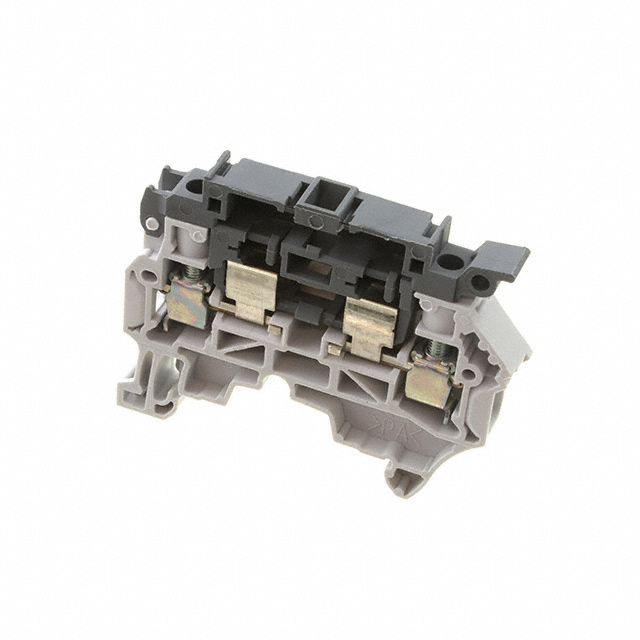

1SNK508411R0000

Active

TE Connectivity ENTRELEC

AUT SNK SCREW

Deep-Dive with AI

Search across all available documentation for this part.

1SNK508411R0000

Active

TE Connectivity ENTRELEC

AUT SNK SCREW

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1SNK508411R0000	1SNK5 Series

Color	Gray	Green, Yellow, Gray, Blue, Red
Current - IEC	6.3 A	6.3 - 232 A
Current - UL	10 A	10 - 230 A
Disconnect Type	Fuse, Lever	Fuse, Lever, Switch, Knife
Features	-	LED Indicator
Fuse Type	5mm x 25mm, 5mm x 20mm	5mm x 25mm, 5mm x 20mm
Material - Insulation	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Levels	1	1
Number of Positions	2	2
Stripping Length	11 mm	10.5 - 26 mm
Terminal - Width [y]	8 mm	6 - 26 mm
Termination Style	Screw	Screw
Type	Disconnect	Ground, Earth, Disconnect, Feed Through
Voltage - IEC	630 V	1 - 630 V
Voltage - UL	-	1000 V
Voltage - UL [custom]	300 V	150 - 300 V
Wire Gauge or Range - AWG [Max]	24 AWG	2 - 24 AWG
Wire Gauge or Range - AWG [Min]	10 AWG	4 - 10 AWG
Wire Gauge or Range - mm˛	-	0.2 mm˛
Wire Gauge or Range - mm˛	-	4 mm˛
Wire Gauge or Range - mm² [Max]	4 mm²	4 - 120 mm²
Wire Gauge or Range - mm² [Min]	0.2 mm²	0.2 - 35 mm²

1SNK5 Series

AUT SNK SCREW

Part	Material Flammability Rating	Color	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Stripping Length	Termination Style	Material - Insulation	Number of Positions	Terminal - Width [y]	Type	Number of Levels	Disconnect Type	Voltage - IEC	Features	Voltage - UL [custom]	Current - IEC	Current - UL	Fuse Type	Voltage - UL	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]
TE Connectivity ENTRELEC 1SNK506153R0000	UL94 V-0	Green, Yellow	0.2 mm²	4 mm²	10 AWG	24 AWG	10.5 mm	Screw	Nylon, Polyamide (PA)	2	6 mm	Ground, Earth	1
TE Connectivity ENTRELEC 1SNK508414R0000	UL94 V-0	Gray	0.2 mm²	4 mm²	10 AWG	24 AWG	11 mm	Screw	Nylon, Polyamide (PA)	2	8 mm	Disconnect	1	Fuse, Lever	630 V	LED Indicator	300 V	6.3 A	10 A	5mm x 20mm, 5mm x 25mm
TE Connectivity ENTRELEC 1SNK526020R0000	UL94 V-0	Blue	35 mm²	120 mm²	4 aught AWG	2 AWG	26 mm	Screw	Nylon, Polyamide (PA)	2	26 mm	Feed Through	1		1 kV			232 A	230 A		1000 V
TE Connectivity ENTRELEC 1SNK506312R0000	UL94 V-0	Gray			10 AWG	24 AWG	10.5 mm	Screw	Nylon, Polyamide (PA)	2	6 mm	Disconnect	1	Knife, Switch	400 V		150 V	26 A	26 A			0.2 mm˛	4 mm˛
TE Connectivity ENTRELEC 1SNK526062R0000	UL94 V-0	Red	35 mm²	120 mm²	4 aught AWG	2 AWG	26 mm	Screw	Nylon, Polyamide (PA)	2	26 mm	Feed Through	1		1 kV			232 A	230 A		1000 V
TE Connectivity ENTRELEC 1SNK508411R0000	UL94 V-0	Gray	0.2 mm²	4 mm²	10 AWG	24 AWG	11 mm	Screw	Nylon, Polyamide (PA)	2	8 mm	Disconnect	1	Fuse, Lever	630 V		300 V	6.3 A	10 A	5mm x 20mm, 5mm x 25mm
TE Connectivity ENTRELEC 1SNK508412R0000	UL94 V-0	Gray	0.2 mm²	4 mm²	10 AWG	24 AWG	11 mm	Screw	Nylon, Polyamide (PA)	2	8 mm	Disconnect	1	Fuse, Lever	630 V	LED Indicator	300 V	6.3 A	10 A	5mm x 20mm, 5mm x 25mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 5.66
		10	$ 4.15
		25	$ 3.85
		50	$ 3.84

Description

General part information

1SNK5 Series

Terminal Block Connector 2 Position Disconnect Gray 10-24 AWG
